NZR Modularis WZW-M - KNX Hot Water Meter with Pulse Counter Module
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$309.01 USD
Regular price
-31%
$444.98 USD
Sale price
$309.01 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

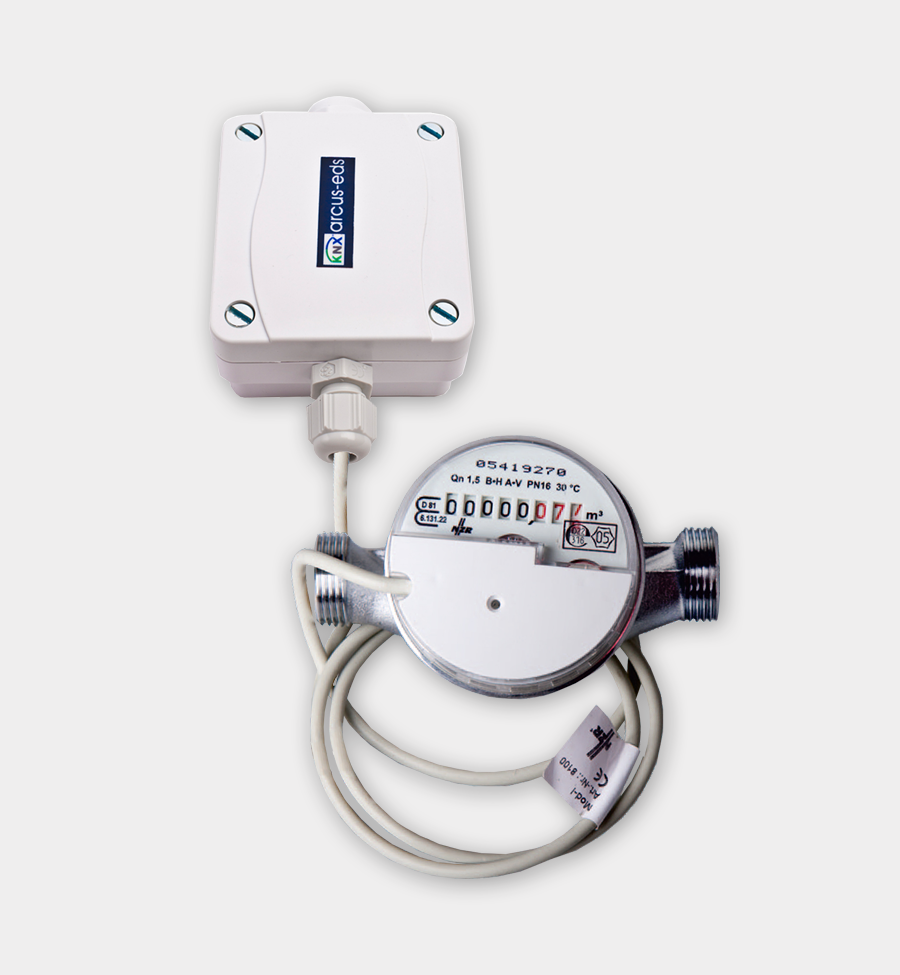

This calibrated NZR Modularis WZW-M hot-water apartment meter ships with an arcus KNX counter module for remote reading of consumption over KNX. The KNX module sits in an IP54/65 housing on a 1.5 m (4.9 ft) connection and keeps its count in battery-backed memory.
Versions: 1.5 m³/h (6.6 GPM) with 80 mm (3.15 in) or 110 mm (4.33 in) installation length, or 2.5 m³/h (11 GPM) with 130 mm (5.12 in), each with male threaded meter connections. The calibration fee is included.
Key Features
- MID-approved, sealed and calibrated hot-water meter, calibration fee included
- Nominal flow 1.5 m³/h (6.6 GPM) (DN15 (1/2 in)) or 2.5 m³/h (11 GPM) (DN20 (3/4 in)); water up to 90 °C (194 °F)
- Installation length 80, 110 or 130 mm (3.15, 4.33 or 5.12 in); male thread 3/4, 1/2 or 1 in per version
- KNX counter module in IP54/65 housing, 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in), 1.5 m (4.9 ft) KNX connection
- Bus powered (approx. 240 mW) with battery-backed count memory
- ETS application IMPZx
Technical Specifications
| Article no. | 60201-75124515 (Hot 1.5 m³/h (6.6 GPM), 80 mm (3.15 in), 3/4 in), 60201-75124525 (Hot 2.5 m³/h (11 GPM), 130 mm (5.12 in), 1 in), 60201-75124615 (Hot 1.5 m³/h (6.6 GPM), 110 mm (4.33 in), 1/2 in) |
|---|---|
| KNX bus voltage | KNX 21-32 VDC |
| Power consumption | approx. 240 mW at 24 VDC (bus powered) |
| Auxiliary supply | Not required (bus coupler integrated); counter module has battery-backed data memory |
| Measuring |
Hot 1.5 m³/h (6.6 GPM), 80 mm (3.15 in), 3/4 in: Hot water (hot, max 90 °C (194 °F)); Qn 1.5 m³/h (6.6 GPM), Qmax 3 m³/h (13.2 GPM), DN15 (1/2 in) Hot 2.5 m³/h (11 GPM), 130 mm (5.12 in), 1 in: Hot water (hot, max 90 °C (194 °F)); Qn 2.5 m³/h (11 GPM), Qmax 5 m³/h (22 GPM), DN20 (3/4 in) Hot 1.5 m³/h (6.6 GPM), 110 mm (4.33 in), 1/2 in: Hot water (hot, max 90 °C (194 °F)); Qn 1.5 m³/h (6.6 GPM), Qmax 3 m³/h (13.2 GPM), DN15 (1/2 in) |
| Inputs / outputs & connections |
Hot 1.5 m³/h (6.6 GPM), 80 mm (3.15 in), 3/4 in: Meter thread per price list AG 3/4"; KNX 2-pole terminal; meter pulse (S0) to IMPZ module; KNX cable 1.5 m (4.9 ft) Hot 2.5 m³/h (11 GPM), 130 mm (5.12 in), 1 in: Meter thread per price list AG 1"; KNX 2-pole terminal; meter pulse (S0) to IMPZ module; KNX cable 1.5 m (4.9 ft) Hot 1.5 m³/h (6.6 GPM), 110 mm (4.33 in), 1/2 in: Meter thread per price list AG 1/2"; KNX 2-pole terminal; meter pulse (S0) to IMPZ module; KNX cable 1.5 m (4.9 ft) |
| Protection rating | IP54/65 (KNX module housing) |
| Dimensions |
Hot 1.5 m³/h (6.6 GPM), 80 mm (3.15 in), 3/4 in: Meter installation length 80 mm (3.15 in); KNX module housing 72 x 64 x 40 Hot 2.5 m³/h (11 GPM), 130 mm (5.12 in), 1 in: Meter installation length 130 mm (5.12 in); KNX module housing 72 x 64 x 40 Hot 1.5 m³/h (6.6 GPM), 110 mm (4.33 in), 1/2 in: Meter installation length 110 mm (4.33 in); KNX module housing 72 x 64 x 40 |
| Mounting | Inline in pipe; KNX module wall mount with 2 screws |
| Operating temperature | KNX module -20 to +55 °C (-4 to 131 °F) (storage -20 to +85 °C (-4 to 185 °F)) |
Application note: EU MID-calibrated meter with G/BSP threaded connections; adapters and local approval may be required for US installations.
Downloads
(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
