Neo-THC - KNX Room Temperature/Humidity Sensor with Controller, Square Aluminum Cover
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$314.27 USD
Regular price
-17%
$377.13 USD
Sale price
$314.27 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

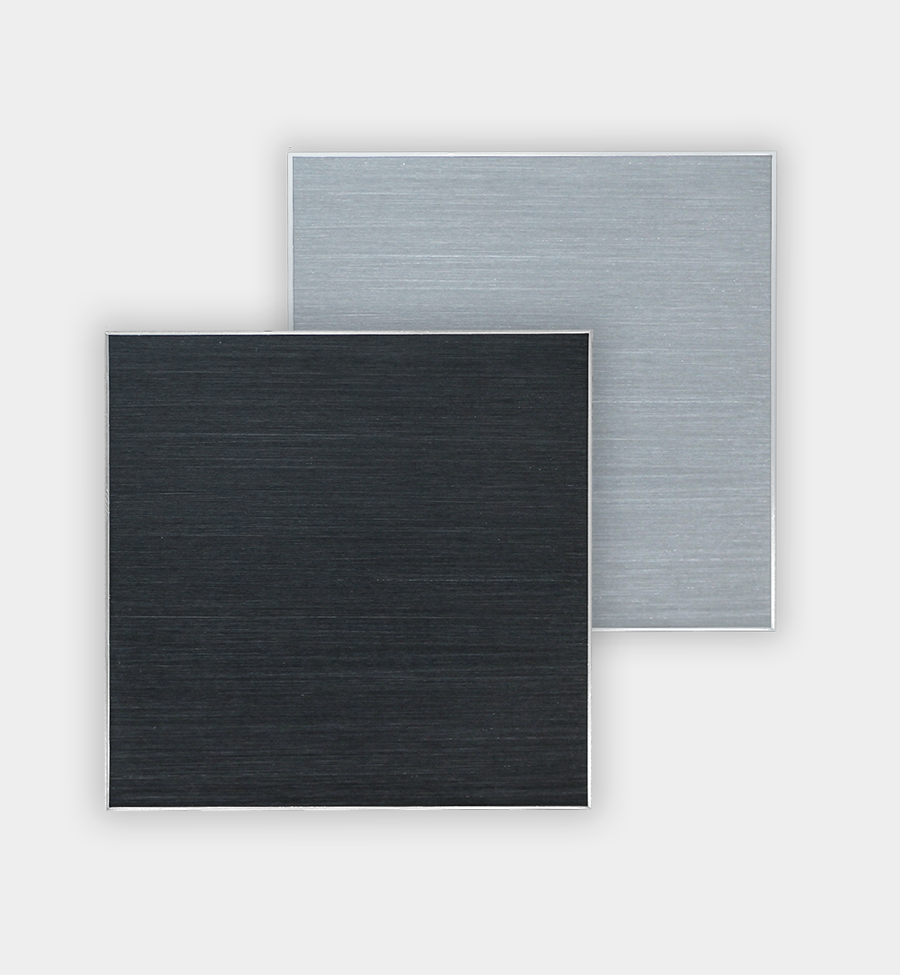

The Neo-THC is a design KNX temperature and humidity sensor with a flat, square sanded aluminum cover just 6 mm (0.24 in) deep, mounted on a standard 60/68 mm (2.36/2.68 in) in-wall box. It suits projects where the sensor should sit quietly alongside premium switch ranges.
An integrated room temperature controller, dew point, absolute humidity and enthalpy calculation, and four floating binary inputs/outputs are built in. The device runs from the KNX bus and is configured in ETS with the HLK305 application. Available in natural sanded aluminum or black anodized.
Key Features
- Temperature -25 to +80 °C (-13 to 176 °F), ±0.4 °C (±0.72 °F) between 5 and 60 °C (41 to 140 °F); 0.02 °C (0.04 °F) resolution
- Humidity 0-100 % RH, ±3 % RH between 20 and 80 % RH
- Calculates absolute humidity, dew point and enthalpy
- Integrated KNX bus coupler and room temperature controller (RTR)
- 4 binary inputs/outputs (floating)
- Flat 80 x 80 x 6 mm (3.15 x 3.15 x 0.24 in) square aluminum cover on a standard 60/68 mm (2.36/2.68 in) in-wall box
- Bus powered; ETS application HLK305
Technical Specifications
| Article no. | 30531583 (Aluminum Sanded), 30531584 (Black Anodized) |
|---|---|
| KNX bus voltage | KNX 21-32 VDC |
| Power consumption | approx. 240 mW at 24 VDC (bus powered) |
| Auxiliary supply | Not required (bus powered) |
| Measuring | Temperature + humidity (sensors in housing); Temperature -25..+80 °C (-13 to 176 °F), res. 0.02 °C (0.04 °F), accuracy ±0.4 °C (±0.72 °F) (5..60 °C (41 to 140 °F)) else ±0.8 °C (±1.4 °F); Humidity 0..100 % rH, res. 0.02 % rH, accuracy ±3 % rH (20..80 %) at +20 °C (68 °F) else ±5 % rH; calculates abs. humidity, dew point, enthalpy |
| Inputs / outputs & connections | 4 binary inputs/outputs (floating) |
| Protection rating | IP20 |
| Dimensions | Cover 80 x 80 x 6 (square) |
| Mounting | Standard 60/68 mm (2.36/2.68 in) flush-mounted box, dry interior |
| Operating temperature | -25 to +80 °C (-13 to 176 °F) (storage -25 to +80 °C (-13 to 176 °F)) |
Downloads
(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
Orders over $500 ship free within the USA (under 50 lbs). Orders under $500 carry a low cost shipping fee.
Most in-stock orders ship within 1–2 business days from Miami, FL. Delivery typically takes 3–5 business days depending on destination.
For freight or oversized orders, our team will contact you with a custom quote.
All KNXSupply products are covered by the manufacturer's warranty, ranging from 1 to 3 years depending on the brand. Warranty terms are fulfilled directly by the manufacturer.
If you experience any issue, contact us and we'll coordinate the claim process on your behalf.
