Neo-TC-VOC - KNX Temperature and VOC Sensor with Controller, Square Aluminum Cover
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$348.46 USD
Regular price
-17%
$418.15 USD
Sale price
$348.46 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Neo-TC-VOC is a design KNX sensor that measures temperature and VOC air quality and includes an integrated room temperature controller (RTR). The VOC sensor tracks mixed-gas air quality, a good basis for air-quality based ventilation control.

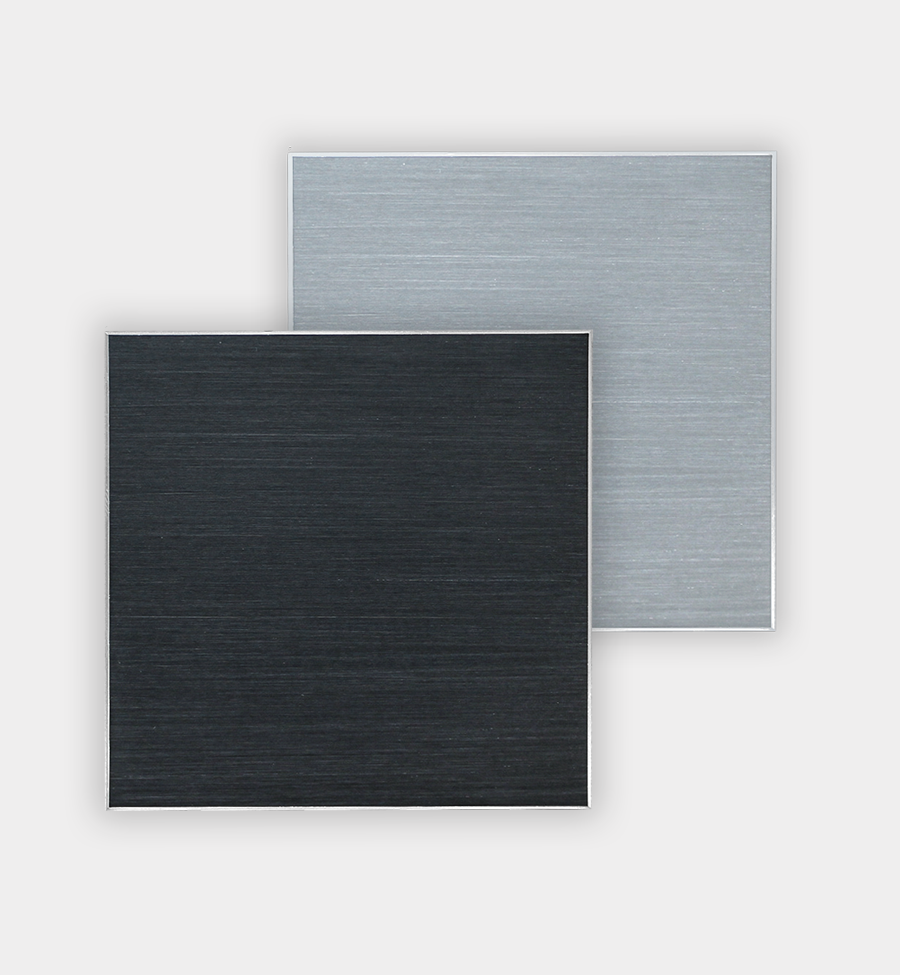

Choose a sanded natural aluminum or sanded black finish for the flat 80 x 80 x 6 mm (3.15 x 3.15 x 0.24 in) cover. The module mounts on a standard 60/68 mm (2.36/2.68 in) flush-mount box, offers four floating binary inputs/outputs and runs on KNX bus power alone.
Key Features
- Temperature -25 to +80 °C (-13 to 176 °F), resolution 0.02 °C (0.04 °F), accuracy ±0.4 °C (±0.72 °F) (5 to 60 °C (41 to 140 °F)), else ±0.8 °C (±1.4 °F)
- VOC mixed-gas air quality measurement
- 4 floating binary inputs/outputs
- Square aluminum cover 80 x 80 x 6 mm (3.15 x 3.15 x 0.24 in) on standard 60/68 mm (2.36/2.68 in) flush-mount box, IP20
- Integrated bus coupler and RTR; bus powered, no auxiliary supply; ETS application HLK305
Technical Specifications
| Article no. | 30513563 (Aluminum Sanded), 30513564 (Black Anodized) |
|---|---|
| KNX bus voltage | KNX 21-32 VDC |
| Power consumption | approx. 240 mW at 24 VDC (bus powered) |
| Auxiliary supply | Not required (bus powered) |
| Measuring | Temperature -25..+80 °C (-13 to 176 °F), res. 0.02 °C (0.04 °F), accuracy ±0.4 °C (±0.72 °F) (5..60 °C (41 to 140 °F)) else ±0.8 °C (±1.4 °F); VOC level |
| Inputs / outputs & connections | 4 binary inputs/outputs (floating) |
| Protection rating | IP20 |
| Dimensions | Cover 80 x 80 x 6 (square) |
| Mounting | Standard 60/68 mm (2.36/2.68 in) flush-mounted box, dry interior |
| Operating temperature | -25 to +80 °C (-13 to 176 °F) (storage -25 to +80 °C (-13 to 176 °F)); 10..95 % rH non-condensing |
Downloads
(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
