Neo-TC-CO2 - KNX Temperature and CO2 Sensor with Controller, Square Aluminum Cover
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$419.47 USD
Regular price
-17%
$503.36 USD
Sale price
$419.47 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Neo-TC-CO2 is a design KNX sensor that measures temperature and CO2 and includes an integrated room temperature controller (RTR). It is a practical choice for demand-controlled ventilation in offices, meeting rooms and classrooms.

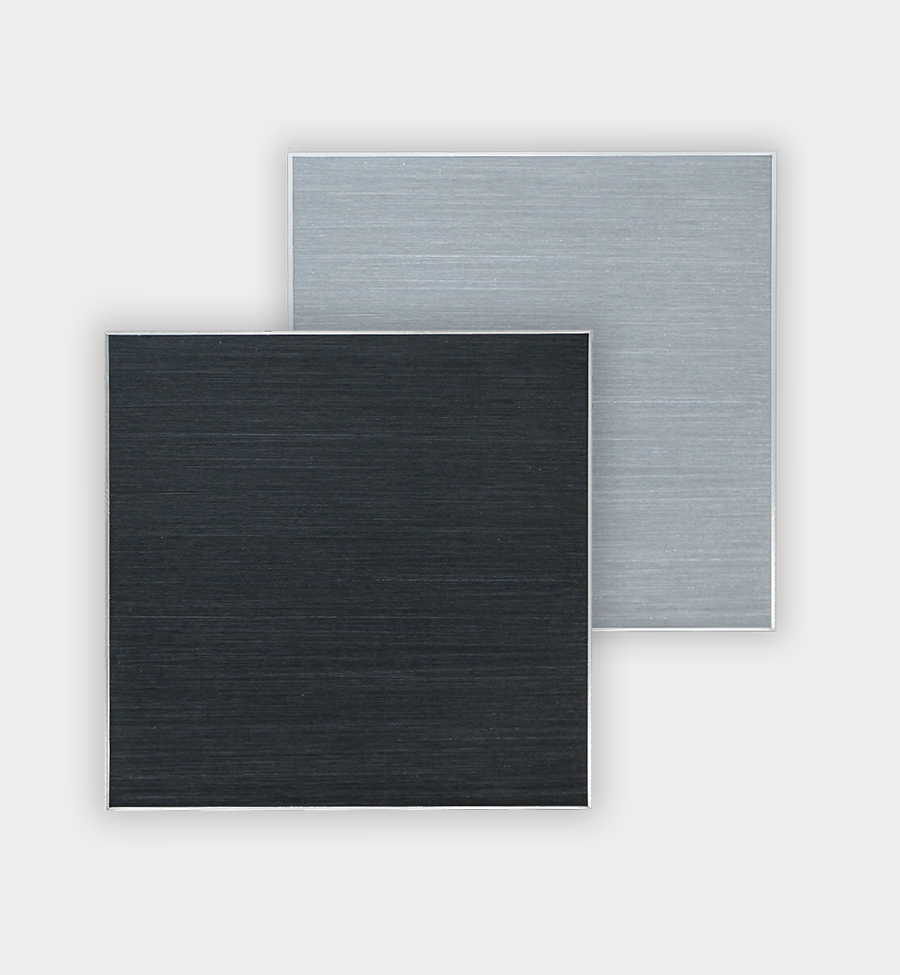

Choose a sanded natural aluminum or sanded black finish for the flat 80 x 80 x 6 mm (3.15 x 3.15 x 0.24 in) cover. The module mounts on a standard 60/68 mm (2.36/2.68 in) flush-mount box, offers four floating binary inputs/outputs and runs on KNX bus power alone.
Key Features
- Temperature -10 to +50 °C (14 to 122 °F), resolution 0.02 °C (0.04 °F), accuracy ±0.4 °C (±0.72 °F) (5 to 60 °C (41 to 140 °F)), else ±0.8 °C (±1.4 °F)
- CO2 400 to 5000 ppm
- 4 floating binary inputs/outputs; LEDs connect without a series resistor
- Square aluminum cover 80 x 80 x 6 mm (3.15 x 3.15 x 0.24 in) on standard 60/68 mm (2.36/2.68 in) flush-mount box, IP20
- Integrated bus coupler and RTR; bus powered, no auxiliary supply; ETS application HLK305
Technical Specifications
| Article no. | 30512563 (Aluminum Sanded), 30512564 (Black Anodized) |
|---|---|
| KNX bus voltage | KNX 21-32 VDC |
| Power consumption | approx. 240 mW at 24 VDC (bus powered) |
| Auxiliary supply | Not required (bus powered) |
| Measuring | Temperature -10..+50 °C (14 to 122 °F), res. 0.02 °C (0.04 °F), accuracy ±0.4 °C (±0.72 °F) (5..60 °C (41 to 140 °F)) else ±0.8 °C (±1.4 °F); CO2 400..5000 ppm, accuracy ±(50 ppm + 3 % of reading) |
| Inputs / outputs & connections | 4 binary inputs/outputs (floating; LEDs connectable without series resistor) |
| Protection rating | IP20 |
| Dimensions | Cover 80 x 80 x 6 (square) |
| Mounting | Standard 60/68 mm (2.36/2.68 in) flush-mounted box, dry interior |
| Operating temperature | -10 to +50 °C (14 to 122 °F) (storage -25 to +60 °C (-13 to 140 °F)); 0..95 % rH non-condensing |
Downloads
(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
