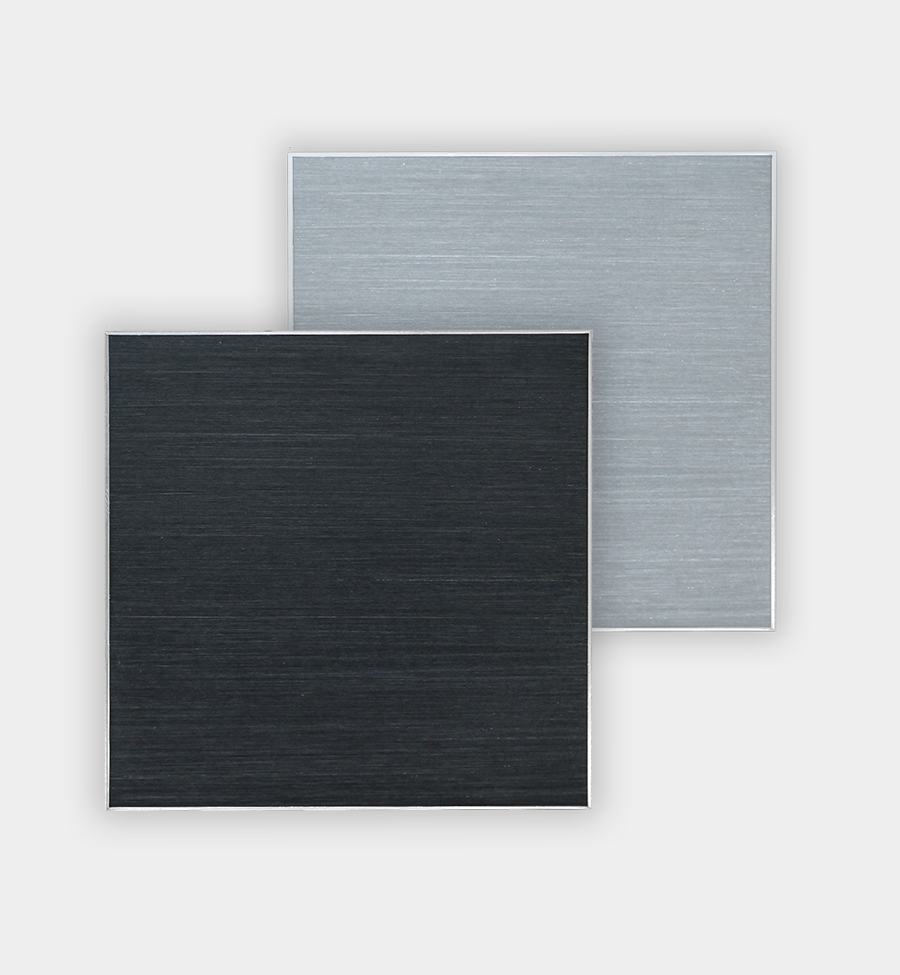

Neo-TC - KNX Room Temperature Sensor with Controller, Square Aluminum Cover
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$301.12 USD
Regular price
-17%
$361.35 USD
Sale price
$301.12 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Neo-TC is a design KNX room temperature sensor with a flat, square sanded aluminum cover just 6 mm (0.24 in) deep, mounted on a standard 60/68 mm (2.36/2.68 in) in-wall box. It suits projects where the sensor should sit quietly alongside premium switch ranges.
An integrated room temperature controller and four floating binary inputs/outputs are built in. It measures from -25 to +80 °C (-13 to 176 °F) with ±0.4 °C (±0.72 °F) accuracy between 5 and 60 °C (41 to 140 °F), runs from the KNX bus and is configured in ETS with the HLK305 application. Available in natural sanded aluminum or black anodized.
Key Features
- Temperature -25 to +80 °C (-13 to 176 °F), ±0.4 °C (±0.72 °F) between 5 and 60 °C (41 to 140 °F); 0.02 °C (0.04 °F) resolution
- Integrated KNX bus coupler and room temperature controller (RTR)
- 4 binary inputs/outputs (floating)
- Flat 80 x 80 x 6 mm (3.15 x 3.15 x 0.24 in) square aluminum cover on a standard 60/68 mm (2.36/2.68 in) in-wall box
- For dry interior locations, IP20
- Bus powered (approx. 240 mW); no auxiliary supply
- ETS application HLK305
Technical Specifications
| Article no. | 30511583 (Aluminum Sanded), 30511584 (Black Anodized) |
|---|---|
| KNX bus voltage | KNX 21-32 VDC |
| Power consumption | approx. 240 mW at 24 VDC (bus powered) |
| Auxiliary supply | Not required (bus powered) |
| Measuring | Air temperature (sensor in housing); Temperature -25..+80 °C (-13 to 176 °F), res. 0.02 °C (0.04 °F), accuracy ±0.4 °C (±0.72 °F) (5..60 °C (41 to 140 °F)) else ±0.8 °C (±1.4 °F) |
| Inputs / outputs & connections | 4 binary inputs/outputs (floating) |
| Protection rating | IP20 |
| Dimensions | Cover 80 x 80 x 6 (square) |
| Mounting | Standard 60/68 mm (2.36/2.68 in) flush-mounted box, dry interior |
| Operating temperature | -25 to +80 °C (-13 to 176 °F) (storage -25 to +80 °C (-13 to 176 °F)) |
Downloads
(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
Orders over $500 ship free within the USA (under 50 lbs). Orders under $500 carry a low cost shipping fee.
Most in-stock orders ship within 1–2 business days from Miami, FL. Delivery typically takes 3–5 business days depending on destination.
For freight or oversized orders, our team will contact you with a custom quote.
All KNXSupply products are covered by the manufacturer's warranty, ranging from 1 to 3 years depending on the brand. Warranty terms are fulfilled directly by the manufacturer.
If you experience any issue, contact us and we'll coordinate the claim process on your behalf.
