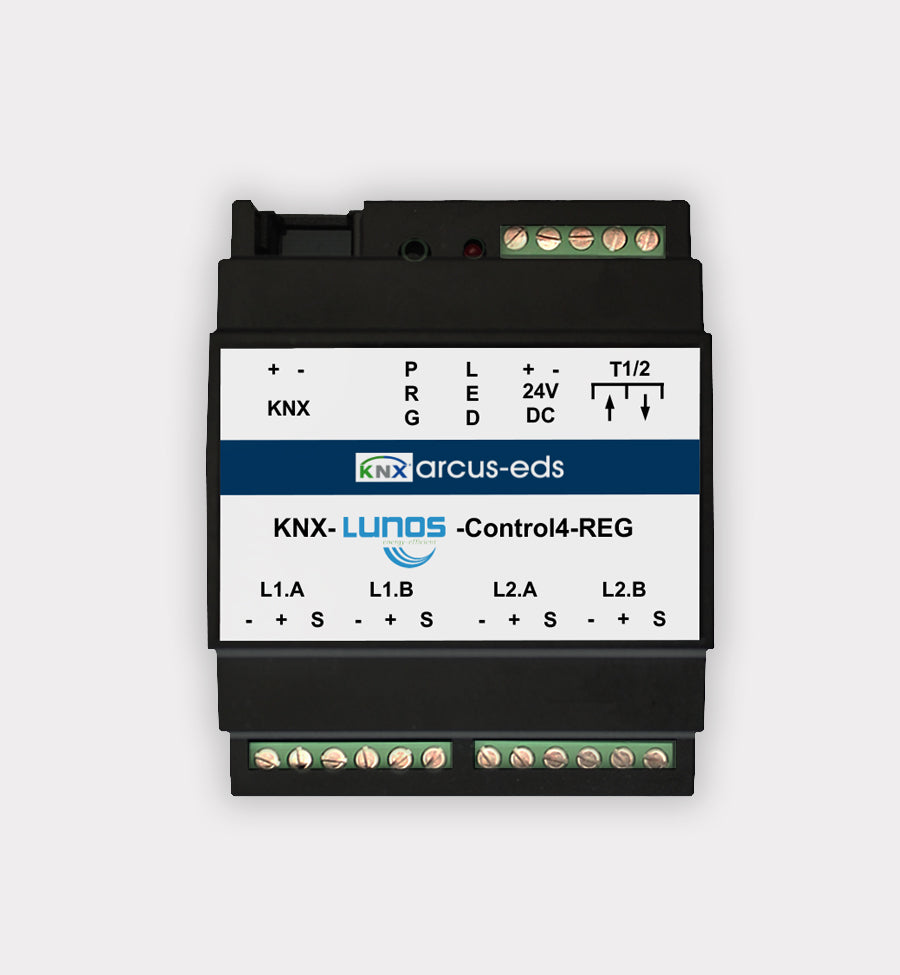

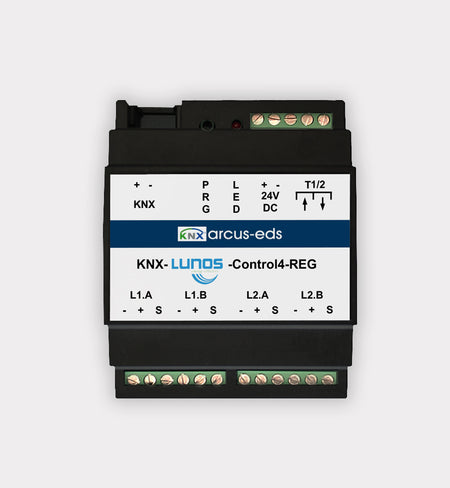

KNX-LUNOS-CONTROL4-REG - KNX DIN-Rail Controller for up to 4 LUNOS Ventilation Fans
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$260.36 USD
Regular price
-17%
$312.43 USD
Sale price
$260.36 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The KNX-LUNOS-CONTROL4-REG is a DIN-rail KNX controller for up to four LUNOS decentralized ventilation fans, letting the ventilation be scheduled and adjusted from the KNX system. Multiple modules can work together, and conventional wall switches or push-buttons can be wired to its potential-free inputs for local control.
The 4-module (72 mm (2.83 in)) housing uses screw terminals for the fan outputs. The KNX side is bus powered; the fans require a 24-32 VDC auxiliary supply.
Key Features
- Controls up to 4 LUNOS decentralized ventilation fans

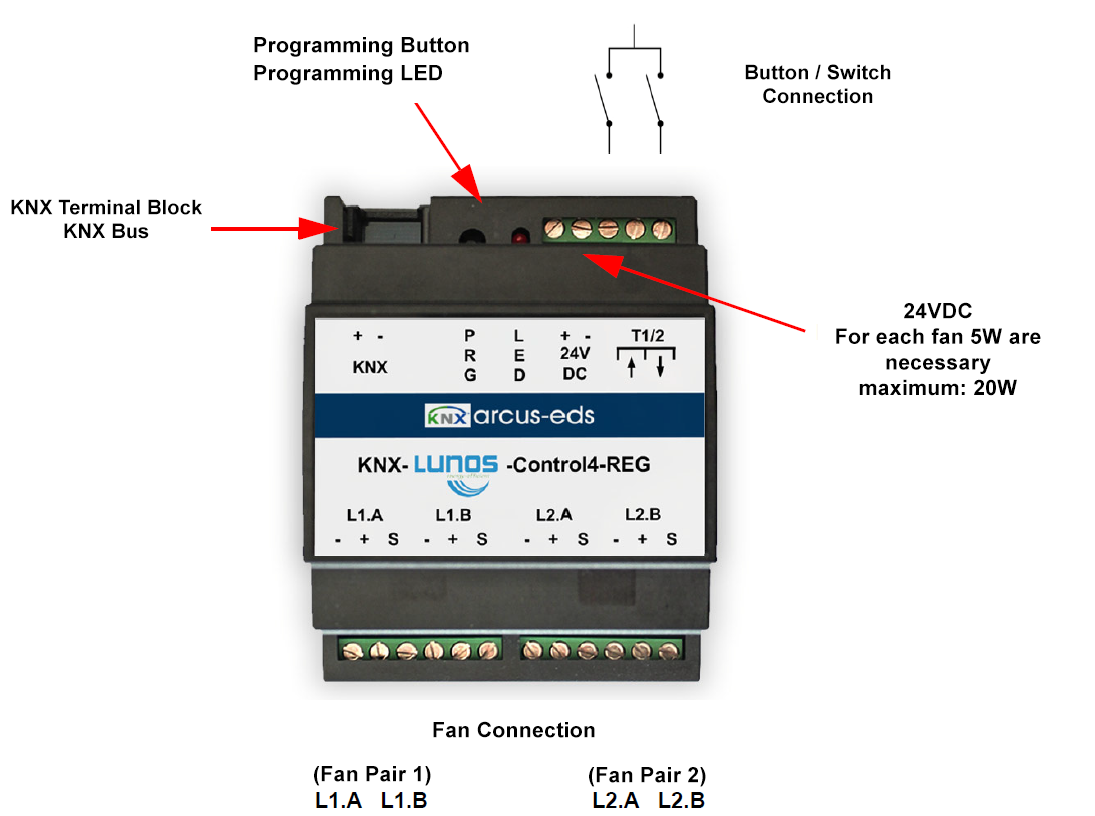

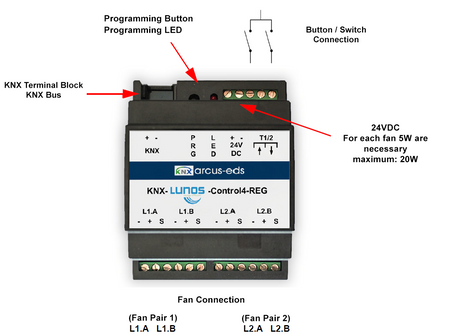

- 4 fan outputs (L1.A, L1.B, L2.A, L2.B) on screw terminals plus potential-free button/switch inputs
- Multiple modules can be networked for coordinated operation
- DIN-rail mount, 4 modules (72 mm (2.83 in)) wide, IP20
- Integrated bus coupler; 24-32 VDC auxiliary supply required (max. 20 W)
- Fan load 5/10/15/20 W for 1 to 4 fans
Technical Specifications
| Article no. | 65001004 |
|---|---|
| KNX bus voltage | KNX 21-32 VDC |
| Power consumption | approx. 120 mW at 24 VDC (KNX); fans 5/10/15/20 W for 1-4 fans |
| Auxiliary supply | 24-32 VDC, max. 20 W (required) |
| Inputs / outputs & connections | 4 fan outputs (L1.A, L1.B, L2.A, L2.B) on screw terminals; potential-free button/switch inputs |
| Protection rating | IP20 |
| Dimensions | DIN-rail housing 4 TE (72 mm (2.83 in) wide) |
| Mounting | DIN rail (REG) |
| Operating temperature | -5 to +45 °C (23 to 113 °F) (storage -20 to +85 °C (-4 to 185 °F)) |
