KNX-LUNOS-CONTROL4-IW - KNX In-Wall Controller for up to 4 LUNOS Ventilation Fans
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$230.11 USD
Regular price
-17%
$276.14 USD
Sale price
$230.11 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

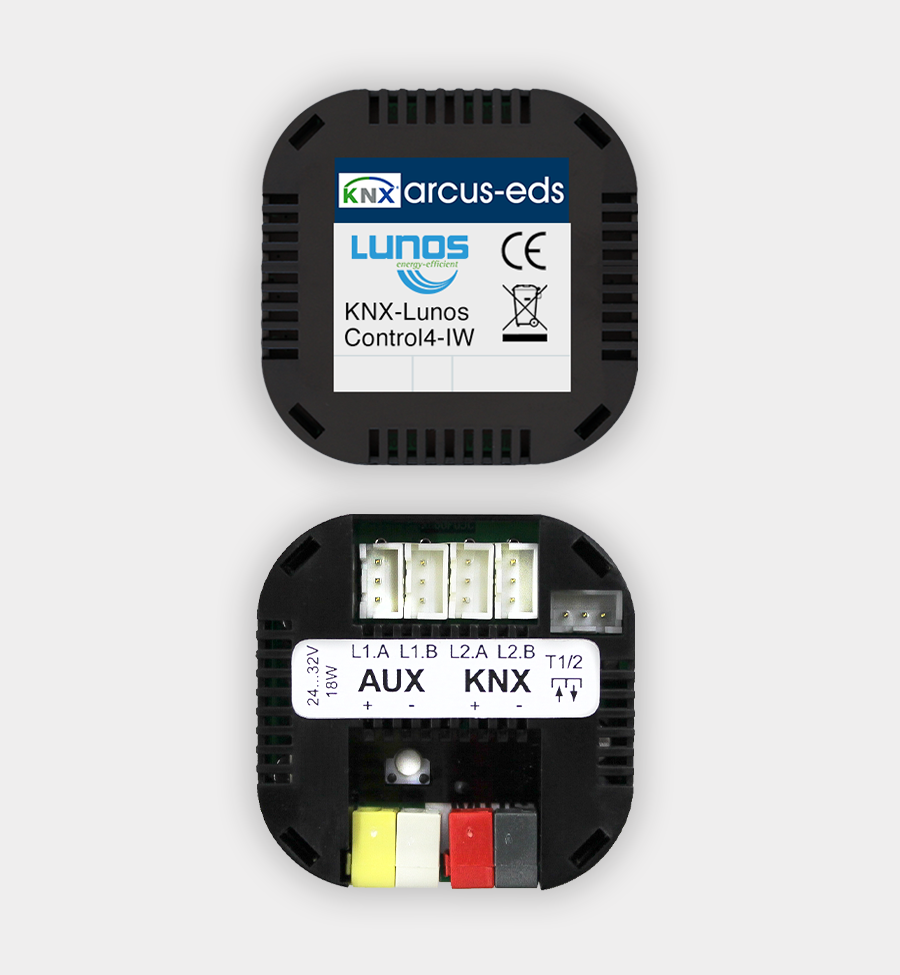

This in-wall KNX module controls up to four LUNOS decentralized heat-recovery ventilation fans, so ventilation can be scheduled and adjusted from the KNX system. Several modules can be networked for coordinated operation, and potential-free inputs keep conventional push-buttons or switches working locally.
The 50 x 50 x 20 mm (1.97 x 1.97 x 0.79 in) module fits a standard 60/68 mm (2.36/2.68 in) in-wall box. The KNX side is bus powered; the fans need a 24-32 VDC auxiliary supply. Also listed as SK07-Lunos-Control4-IW.
Key Features
- Controls up to 4 LUNOS decentralized ventilation fans (e.g. e2, e2 60)

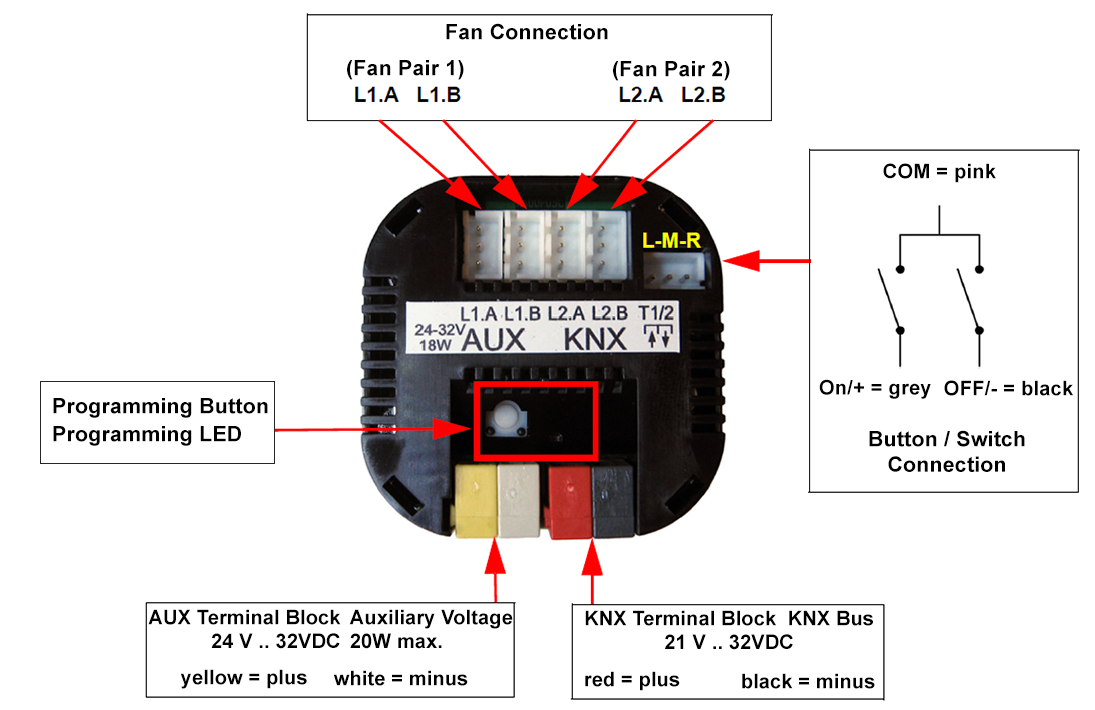

- 4 fan outputs (L1.A, L1.B, L2.A, L2.B) plus potential-free button/switch inputs
- Multiple modules can be networked for coordinated operation
- Flush mount in standard 60/68 mm (2.36/2.68 in) in-wall box, 50 x 50 x 20 mm (1.97 x 1.97 x 0.79 in), IP20
- Integrated bus coupler; 24-32 VDC auxiliary supply required (max. 20 W)
- Fan load 5/10/15/20 W for 1 to 4 fans
Technical Specifications
| Article no. | 65001002 |
|---|---|
| KNX bus voltage | KNX 21-32 VDC |
| Power consumption | approx. 120 mW at 24 VDC (KNX); fans 5/10/15/20 W for 1-4 fans |
| Auxiliary supply | 24-32 VDC, max. 20 W (required) |
| Inputs / outputs & connections | 4 fan outputs (L1.A, L1.B, L2.A, L2.B); potential-free button/switch inputs |
| Protection rating | IP20 |
| Dimensions | 50 x 50 x 20 mm (1.97 x 1.97 x 0.79 in) (58 diagonal) |
| Mounting | Flush mount in standard in-wall box (60/68 mm (2.36/2.68 in)) |
| Operating temperature | -5 to +45 °C (23 to 113 °F) (storage -20 to +85 °C (-4 to 185 °F)) |
