KNX-LED4-AQx - KNX RGB and Amber LED Light, Square Aluminum Front
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$406.32 USD
Regular price
-17%
$487.58 USD
Sale price
$406.32 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

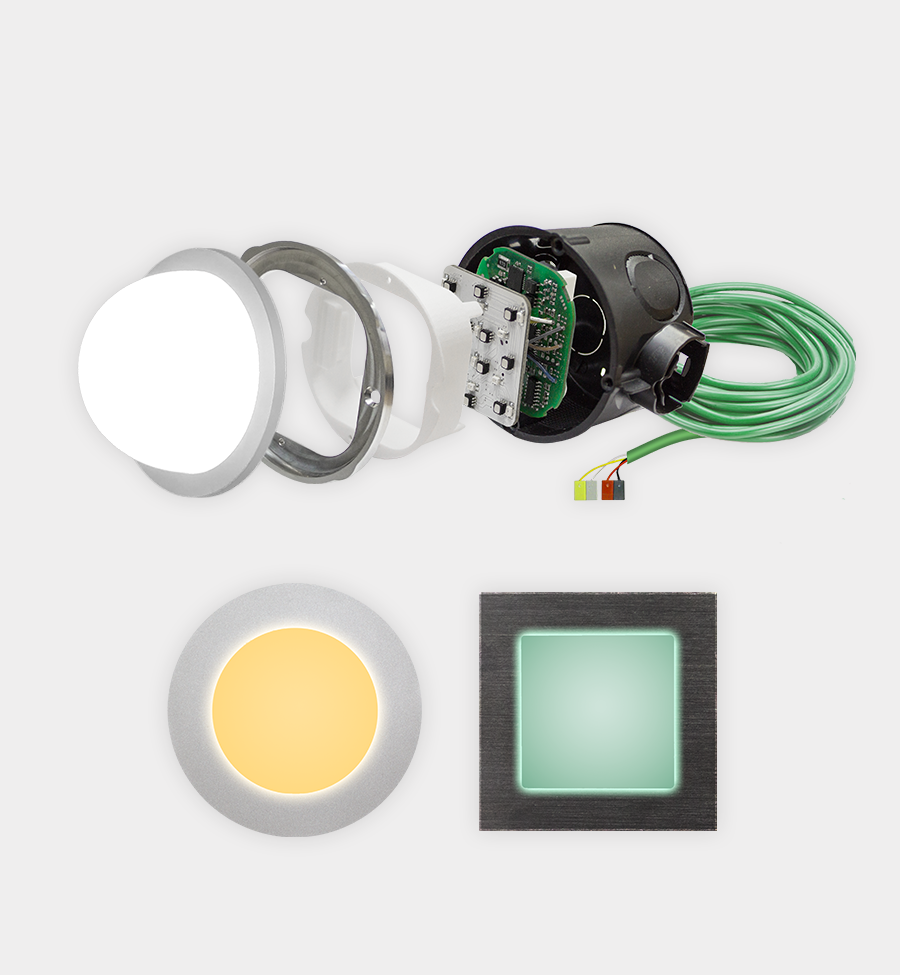

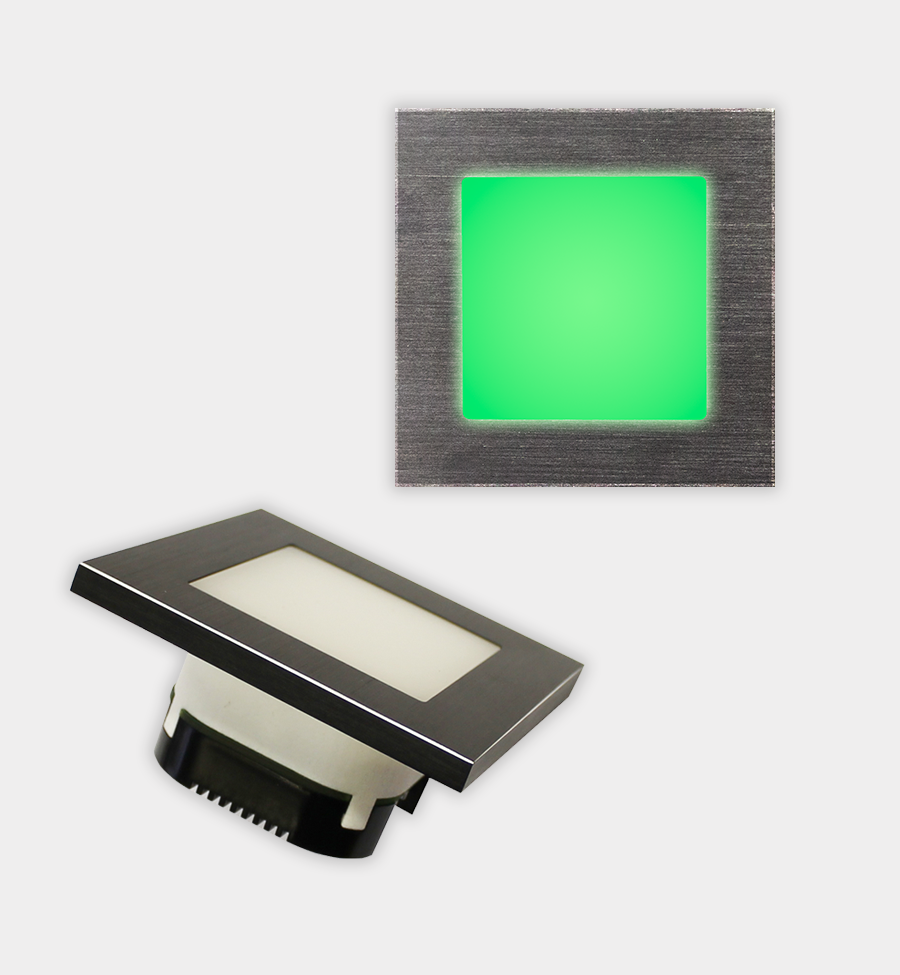

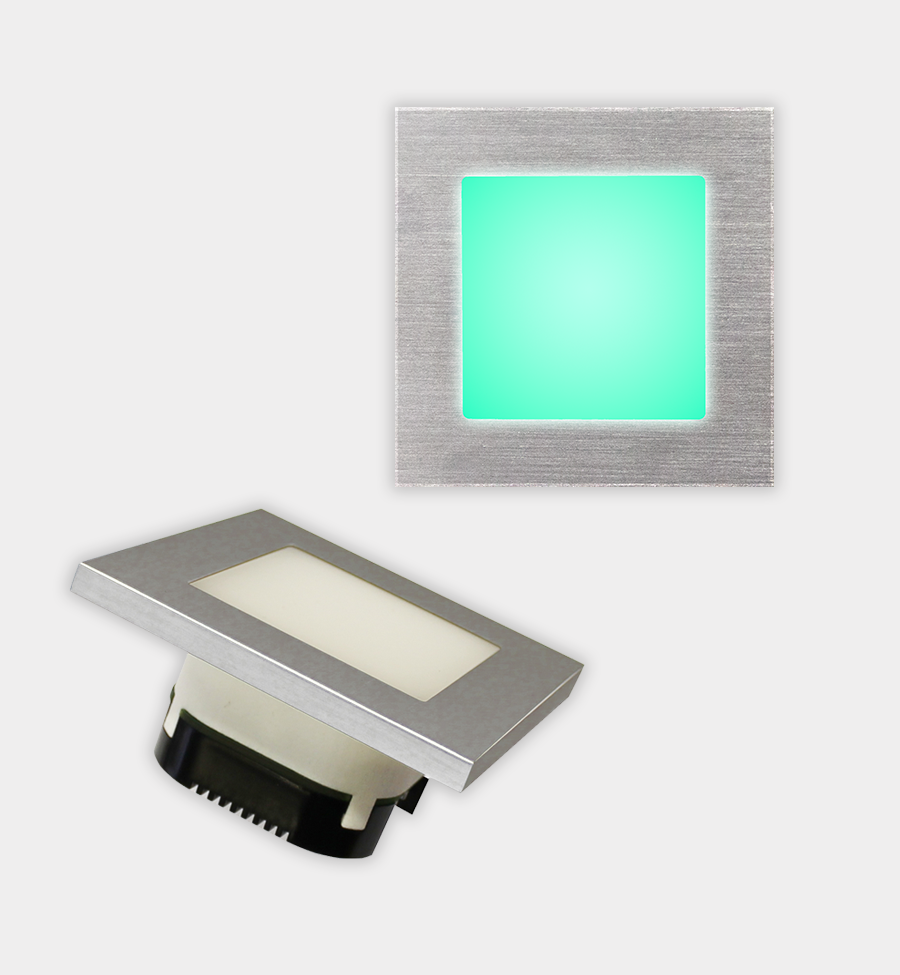

The KNX-LED4-AQx is a flush-mounted KNX LED light with RGB color mixing plus a separate amber channel, dimmable and suitable as an orientation, wall or status light. It has a square 80 x 80 mm (3.15 x 3.15 in) anodized aluminum front.
Available in sanded silver anodized or black anodized aluminum. The light installs in an in-wall box and is powered from KNX plus a 24-32 VDC auxiliary supply.
Key Features
- RGB color mixing (16 million or fixed colors) plus independent amber channel
- 3 W LED, 150 lm, dimmable
- Use as orientation, wall or status/signal light
- 2 binary contact inputs
- Auxiliary supply 24-32 VDC, approx. 130 mA (required); approx. 240 mW from KNX
- Flush mount; insert 50 x 50 x 32 mm (1.97 x 1.97 x 1.26 in), front 80 x 80 mm (3.15 x 3.15 in), IP20
Technical Specifications
| Article no. | 41040223 (Aluminum Sanded), 41040224 (Black Anodized) |
|---|---|
| KNX bus voltage | KNX 21-32 VDC |
| Power consumption | approx. 240 mW from KNX at 24 VDC; LED 3 W |
| Auxiliary supply | 24-32 VDC, approx. 130 mA (required) |
| Inputs / outputs & connections | 2 binary contact inputs |
| Protection rating | IP20 |
| Dimensions | Insert 50 x 50 x 32 deep; front 80 x 80 mm (3.15 x 3.15 in) |
| Mounting | Flush mount (in-wall box) |
| Operating temperature | 0 to +50 °C (32 to 122 °F) (storage 0 to +80 °C (32 to 176 °F)) |
