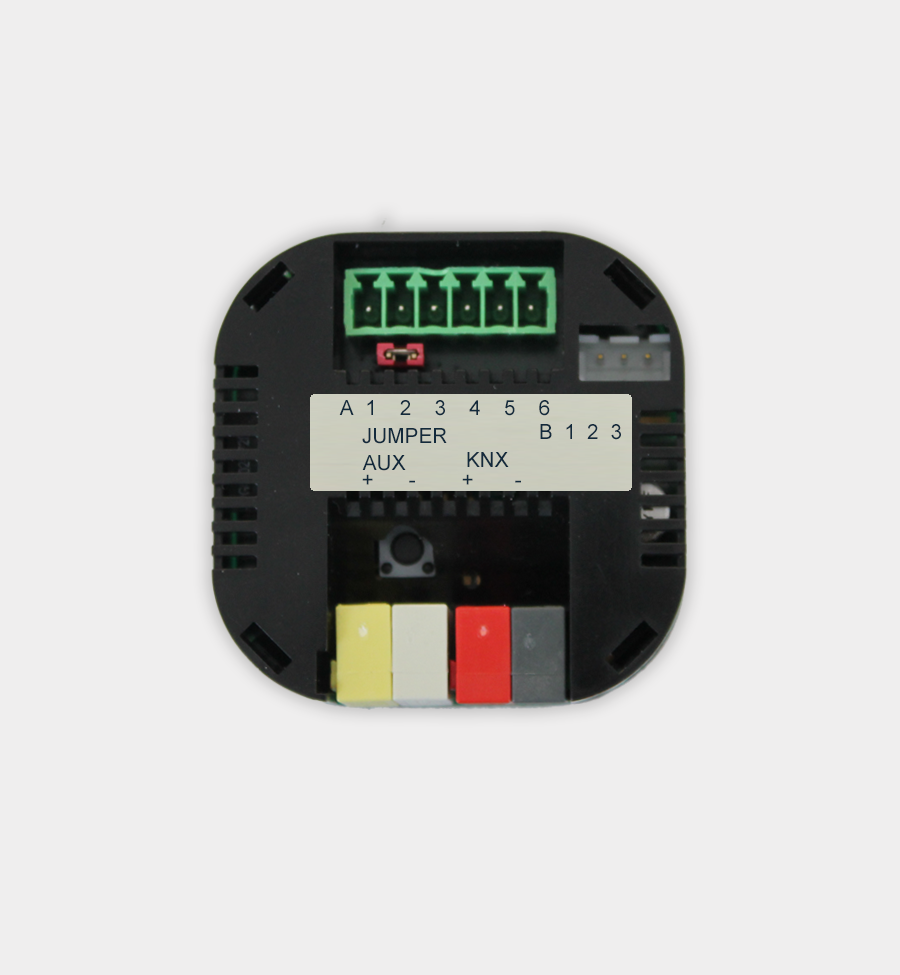

The KNX-LED-Driver Unit is a compact 5-channel KNX LED driver for RGB plus tunable-white LED strips or luminaires, with color selection and dimming from the bus. Two binary inputs accept local switches.

The driver handles up to 25 W at 12 VDC or 50 W at 24 VDC, with the LED voltage mode set by jumper, and fits a 50 x 50 mm (1.97 x 1.97 in) SK07 housing. The ETS application is available on request from the manufacturer.

Key Features

  • 5 LED output channels: RGB plus dual white, or 2-channel tunable white
  • 16 million RGB colors plus tunable white 0-100 %
  • LED load up to 25 W at 12 VDC or 50 W at 24 VDC; mode set by jumper
  • External DC supply required for the LED load (up to 2 A)
  • 2 binary inputs
  • Compact 50 x 50 x 26 mm (1.97 x 1.97 x 1.02 in) SK07 housing, IP20, 0 to +50 °C (32 to 122 °F)

Technical Specifications

Article no. 41040070
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 240 mW at 24 VDC (KNX); LED load up to 25 W at 12 VDC or 50 W at 24 VDC
Auxiliary supply 24-32 VDC, up to 2 A (required; 12/24 VDC LED mode via jumper)
Inputs / outputs & connections 5 LED output channels (RGB + dual white, or 2-channel tunable white); 2 binary inputs
Protection rating IP20
Dimensions 50 x 50 x 26 mm (1.97 x 1.97 x 1.02 in) deep (with plug)
Mounting Flush/in-wall (SK07-style 50x50 insert; not explicitly stated)
Operating temperature 0 to +50 °C (32 to 122 °F) (storage 0 to +80 °C (32 to 176 °F))
