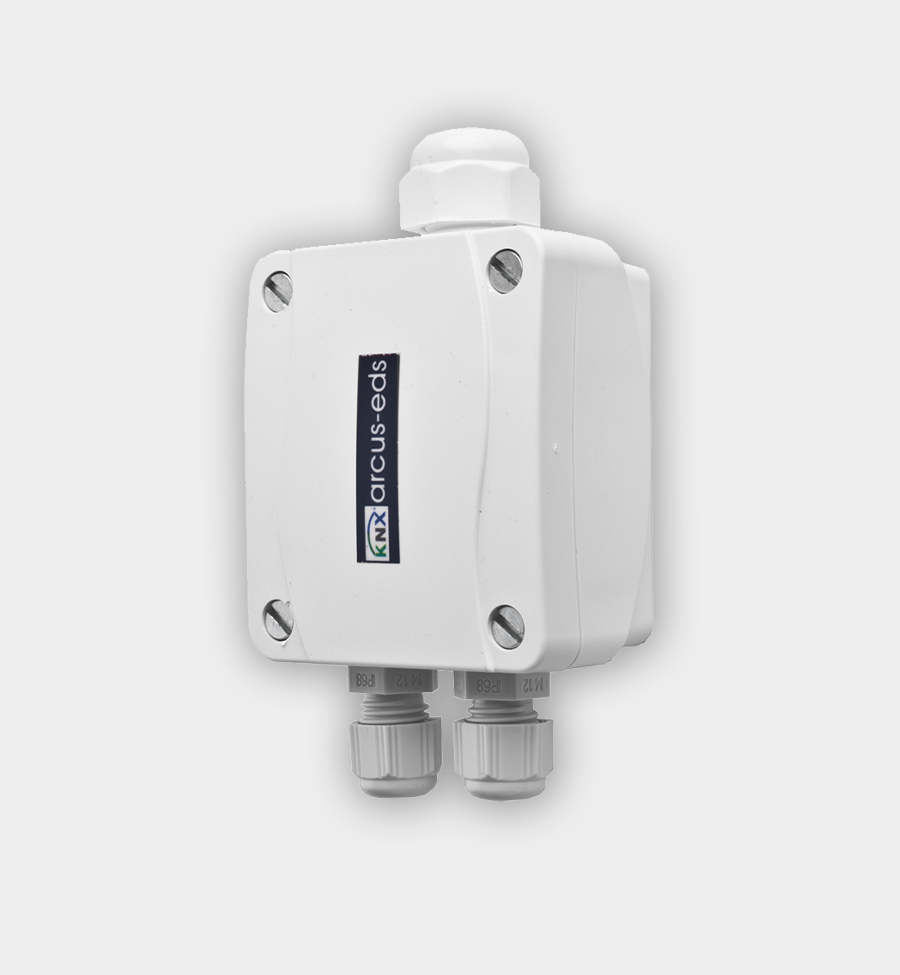

KNX-IMPZ2-SK10 - KNX S0 Pulse Counter, 2 Channels, Surface Mount, IP54
KNX-IMPZ2-SK10 - KNX S0 Pulse Counter, 2 Channels, Surface Mount, IP54

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ARCUS EDS

KNX-IMPZ2-SK10 - KNX S0 Pulse Counter, 2 Channels, Surface Mount, IP54

SKU: 60201201
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$261.67 USD
-17% $314.01 USD $261.67 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The KNX-IMPZ2-SK10 is a two-channel impulse counter in an IP54 surface housing. It can serve as two separate counters or as one dual-tariff counter, reading S0 or pulse outputs and reporting them to KNX.

No auxiliary supply is needed; the counter runs on KNX bus power and is configured in ETS with the IMPZx application, including its behavior on bus voltage failure.

Key Features

  • 2 S0/pulse counter inputs
  • Two independent counters or one dual-tariff counter
  • For electricity, water and gas meters with pulse outputs
  • Configurable behavior on bus voltage failure
  • Bus powered (approx. 240 mW), no auxiliary supply
  • IP54 gray surface housing, 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in); ETS application IMPZx

Technical Specifications

Article no. 60201201
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 240 mW at 24 VDC (bus powered)
Auxiliary supply Not required (bus coupler integrated)
Measuring 2 S0/impulse inputs – two separate counters or one counter with two tariffs/scales
Inputs / outputs & connections KNX 2-pole terminal (red/black); 2 impulse (S0) inputs
Protection rating IP54
Dimensions 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in)
Mounting Surface mount, grey plastic
Operating temperature -20 to +55 °C (-4 to 131 °F) (storage -20 to +85 °C (-4 to 185 °F))

Downloads

(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
