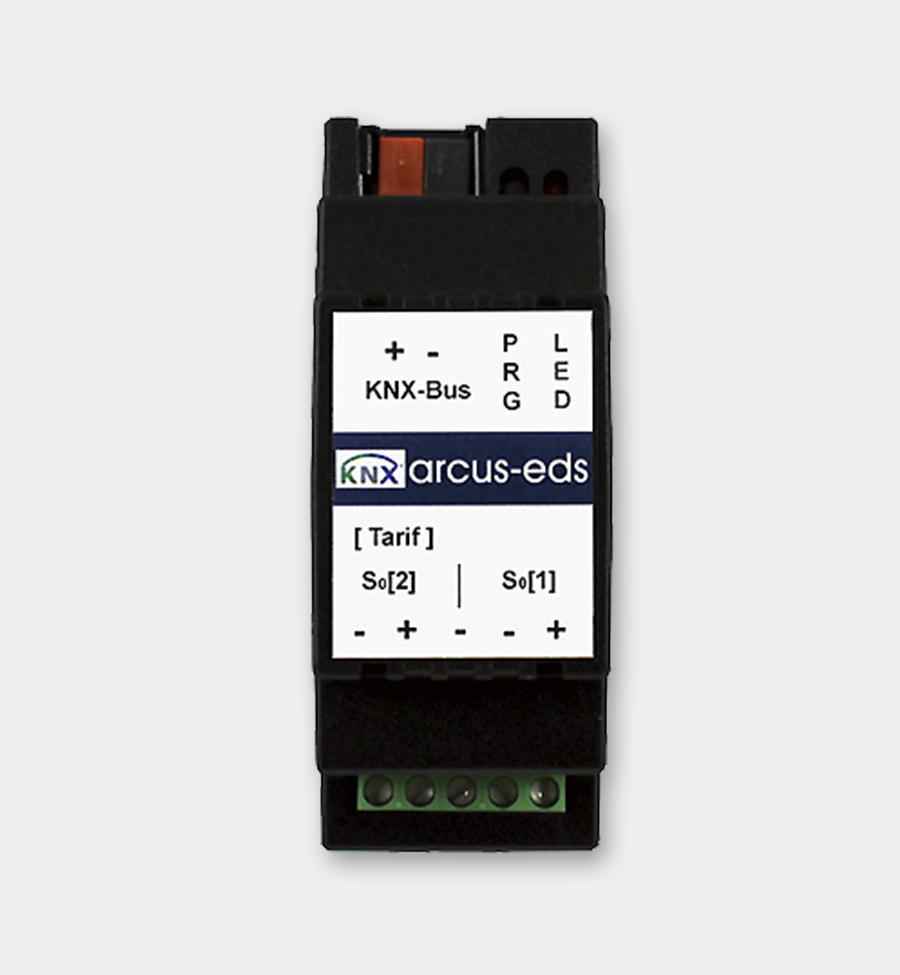

KNX-IMPZ2-REG - KNX S0 Pulse Counter, 2 Channels, DIN Rail
KNX-IMPZ2-REG - KNX S0 Pulse Counter, 2 Channels, DIN Rail

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ARCUS EDS

KNX-IMPZ2-REG - KNX S0 Pulse Counter, 2 Channels, DIN Rail

SKU: 60201202
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$282.71 USD
-17% $339.25 USD $282.71 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The KNX-IMPZ2-REG is a two-channel impulse counter for DIN rail. It works either as two independent counters or as one counter with two tariffs, reading meters with S0 or pulse outputs and reporting the values on KNX.

The module is bus powered, configured in ETS with the IMPZx application and lets you define its behavior on bus voltage failure. It takes two module widths in the panel.

Key Features

  • 2 S0/pulse counter inputs
  • Two independent counters or one dual-tariff counter
  • For electricity, water and gas meters with pulse outputs
  • Configurable behavior on bus voltage failure
  • Bus powered (approx. 240 mW), no auxiliary supply
  • 2-module DIN rail, IP20; ETS application IMPZx

Technical Specifications

Article no. 60201202
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 240 mW at 24 VDC (bus powered)
Auxiliary supply Not required (bus coupler integrated)
Measuring 2 S0/impulse inputs – two separate counters or one counter with two tariffs/scales
Inputs / outputs & connections KNX 2-pole terminal (red/black); 2 impulse (S0) inputs
Protection rating IP20
Mounting DIN rail, 2 TE (35 mm (1.38 in))
Operating temperature -20 to +55 °C (-4 to 131 °F) (storage -20 to +85 °C (-4 to 185 °F))

Downloads

(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
