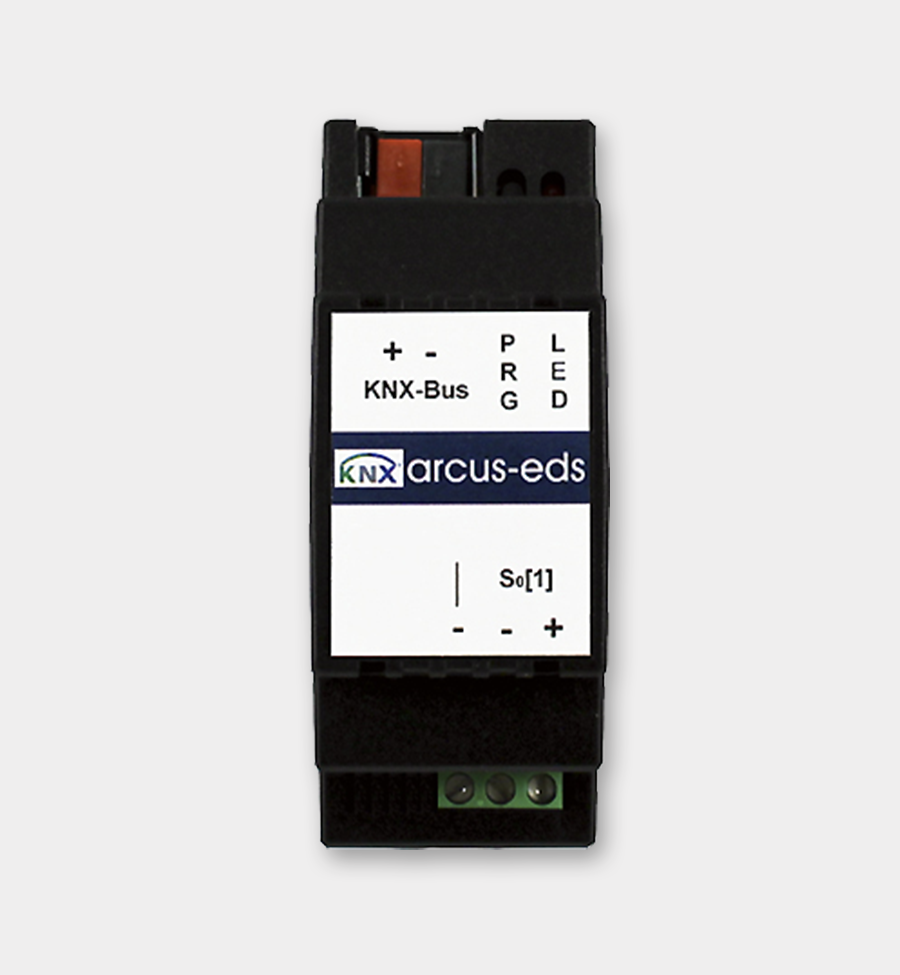

KNX-IMPZ1-REG - KNX S0 Pulse Counter, 1 Channel, DIN Rail
KNX-IMPZ1-REG - KNX S0 Pulse Counter, 1 Channel, DIN Rail

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ARCUS EDS

KNX-IMPZ1-REG - KNX S0 Pulse Counter, 1 Channel, DIN Rail

SKU: 60201102
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$235.37 USD
-17% $282.45 USD $235.37 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The KNX-IMPZ1-REG is a single-channel impulse counter for DIN rail. It reads any meter with an S0 or pulse output, such as electricity, water or gas meters, and reports counts and consumption values on KNX.

The module is powered from the KNX bus with no auxiliary supply and is configured in ETS with the IMPZx application. It takes two module widths in the panel.

Key Features

  • 1 S0/pulse counter input
  • For electricity, water and gas meters with pulse outputs
  • Reports counts and consumption on KNX
  • Bus powered (approx. 240 mW), no auxiliary supply
  • 2-module DIN rail, black housing, IP20
  • ETS application IMPZx; operating range -20 to +55 °C (-4 to 131 °F)

Technical Specifications

Article no. 60201102
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 240 mW at 24 VDC (bus powered)
Auxiliary supply Not required (bus coupler integrated)
Measuring 1 S0/impulse counter input
Inputs / outputs & connections KNX 2-pole terminal (red/black); 1 impulse (S0) input
Protection rating IP20
Mounting DIN rail, 2 TE (35 mm (1.38 in)), black
Operating temperature -20 to +55 °C (-4 to 131 °F) (storage -20 to +85 °C (-4 to 185 °F))

Downloads

(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
