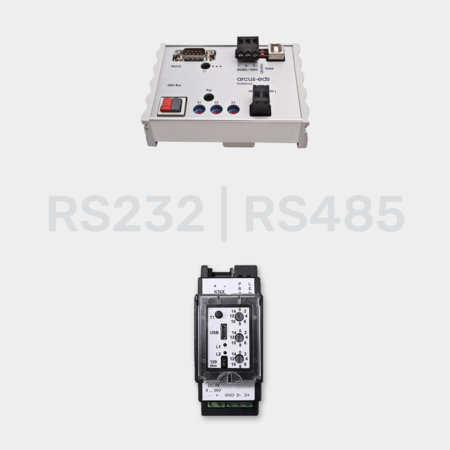

KNX-GW2-RS232-RS485 - KNX to RS232 and RS485 Serial Gateway, 6-Module DIN Rail

SKU: 40210186
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$537.81 USD
-17% $645.37 USD $537.81 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

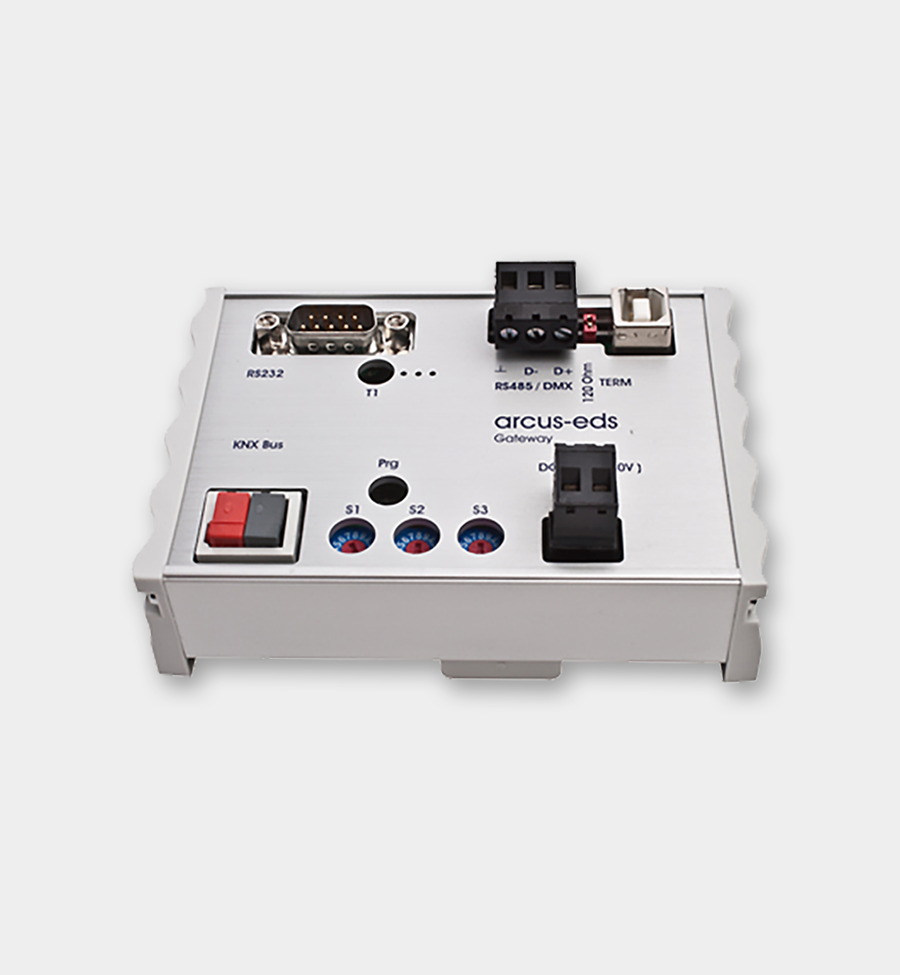

The KNX-GW2-RS232-RS485 sends and receives serial commands from KNX through both an RS232 (D-Sub 9) and an RS485 port. Typical uses include controlling AV receivers, projectors or HVAC units, with around 1,200 commands stored in the device.

The gateway occupies 6 DIN-rail modules and is configured with the arcus KNX-SERIAL-GW-II PC software over USB Type B. It needs a 9-30 VDC auxiliary supply or USB power, and KNX is galvanically separated from the serial side.

Key Features

  • Bidirectional KNX to RS232 and RS485 gateway
  • RS232 on D-Sub 9 male, up to 115.2 kBaud
  • RS485 galvanically isolated, 3 screw terminals, 120 Ω termination by jumper
  • Approx. 1,200 serial commands; data formats 8N1 to 8O2, 1/1.5/2 stop bits
  • Configured with the KNX-SERIAL-GW-II PC tool via USB Type B
  • Auxiliary supply 9-30 VDC, 100 mA (isolated, polarity-safe) or USB
  • 6-module DIN rail, 107 x 75 x 31 mm (4.21 x 2.95 x 1.22 in), IP20, -5 to +45 °C (23 to 113 °F)

Technical Specifications

Article no. 40210186
KNX bus voltage KNX 20-32 VDC (approx. 150 mW)
Power consumption approx. 150 mW from KNX; aux 9-30 VDC up to 100 mA
Auxiliary supply 9-30 VDC, 100 mA, internally galvanically isolated, polarity-safe – or USB
Inputs / outputs & connections KNX terminal; RS485 (250 kBaud, galvanically isolated, 3 x screw terminals 0.8 mm2 (approx. 18 AWG), 120 Ohm termination by jumper); RS232 D-Sub 9 male (pins 2/3/5, max 115.2 kBaud); USB Type B; 3 x 16-step rotary switch, T1, PRG + LED
Protection rating IP20
Dimensions 107 x 75 x 31 mm (4.21 x 2.95 x 1.22 in)
Mounting DIN rail, 6 TE (modules)
Operating temperature -5 to +45 °C (23 to 113 °F)

Downloads

(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
