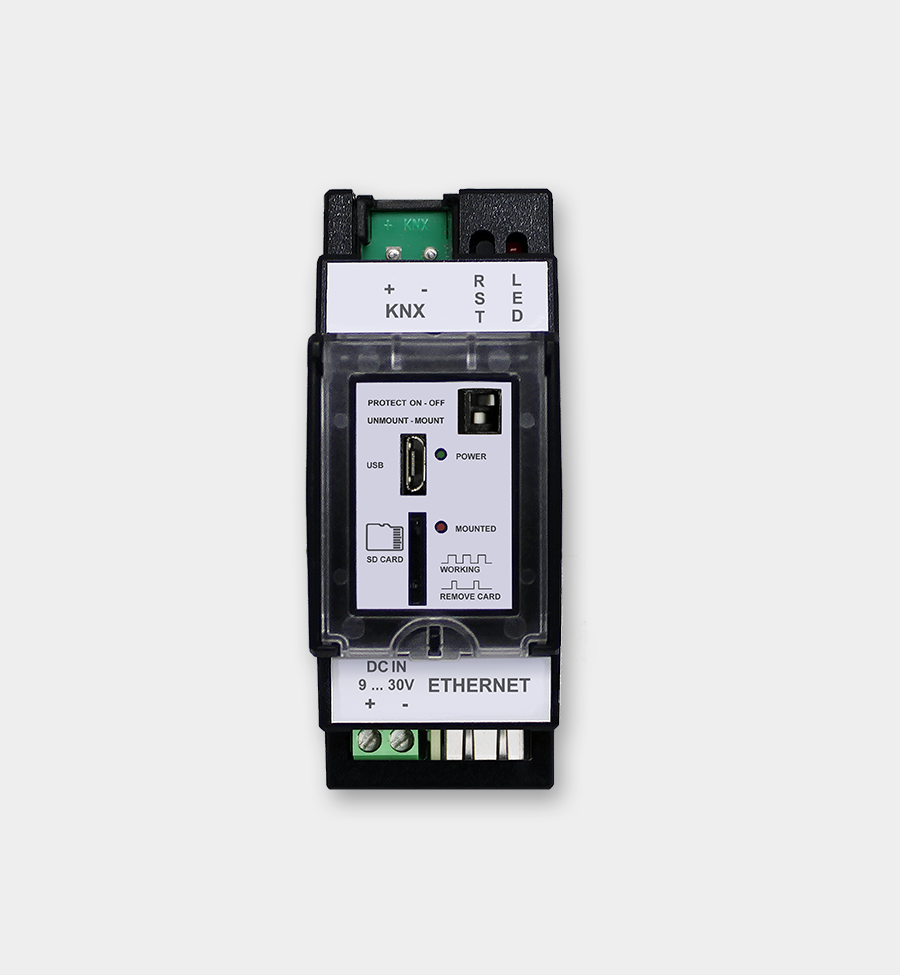

The KNX-GW2-IP-2TE is a slim 2-module DIN-rail KNX IP interface that connects the KNX bus to an Ethernet network for ETS programming and IP-based access to the installation.

Besides the 10/100 Ethernet port, it offers a USB port that appears as a network device on the connected PC. The interface requires a 9-30 VDC auxiliary supply and comes in a black housing.

Key Features

  • KNXnet/IP data interface for ETS programming and IP access
  • Ethernet 10/100 RJ45
  • USB port presented as a network device (Ethernet over USB)
  • Auxiliary supply 9-30 VDC, max. 1.5 W (required)
  • Approx. 120 mW from KNX
  • 2-module DIN rail, black housing, IP20, -25 to +55 °C (-13 to 131 °F)

Technical Specifications

Article no. 40400003
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 120 mW at 24 VDC (KNX); aux max. 1.5 W
Auxiliary supply 9-30 VDC, max. 1.5 W (required, 2-pole screw terminal)
Inputs / outputs & connections Ethernet 10/100 RJ45; USB (Ethernet-over-USB device); KNX terminal
Protection rating IP20
Dimensions DIN-rail 2 TE (35 mm (1.38 in))
Mounting DIN rail (REG), 2 TE, black plastic housing
Operating temperature -25 to +55 °C (-13 to 131 °F) (storage -25 to +85 °C (-13 to 185 °F))

Downloads

(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
