KNX-GW2-DMX-6TE - KNX to DMX512 Gateway, 512 Channels, 6-Module DIN Rail

SKU: 40200186
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$537.81 USD
-17% $645.37 USD $537.81 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

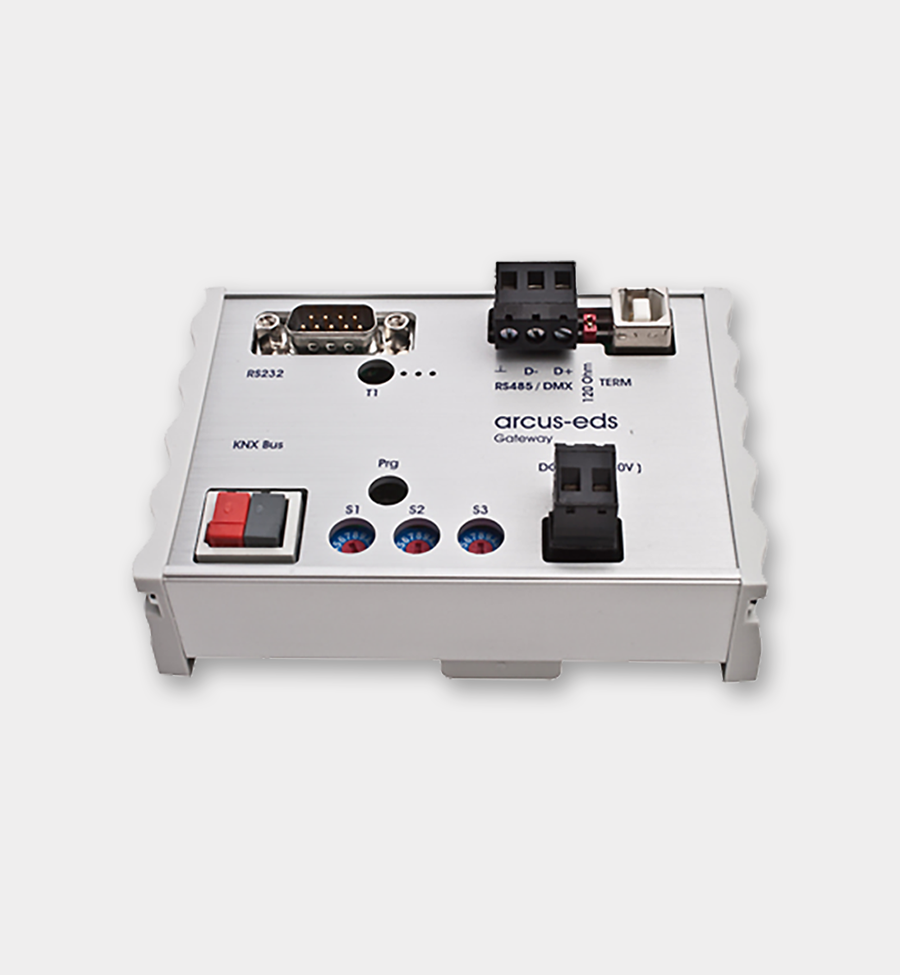

The KNX-GW2-DMX-6TE connects KNX to a DMX512 lighting universe of up to 512 channels from a 6-module DIN-rail housing. Up to 64 scenes and 16 fixed sequences are stored in the device and triggered from any KNX sensor or visualization.

Setup is done with the arcus KNX-DMX-GW-II PC software over a USB Type B port, not through an ETS application. The DMX side runs on a 9-30 VDC auxiliary supply or USB power.

Key Features

  • Controls up to 512 DMX channels
  • Up to 64 stored scenes and 16 fixed sequences, triggered from KNX
  • DMX512 over galvanically isolated RS485, 3 screw terminals, 120 Ω termination by jumper
  • Configured with the KNX-DMX-GW-II PC tool via USB Type B
  • Auxiliary supply 9-30 VDC, 100 mA (isolated, polarity-safe) or USB power
  • 6-module DIN rail, 107 x 75 x 31 mm (4.21 x 2.95 x 1.22 in), IP20
  • Operating range -5 to +45 °C (23 to 113 °F)

Technical Specifications

Article no. 40200186
KNX bus voltage KNX 20-32 VDC (approx. 150 mW)
Power consumption approx. 150 mW from KNX; aux 9-30 VDC up to 100 mA
Auxiliary supply 9-30 VDC, 100 mA, internally galvanically isolated, polarity-safe – or powered via USB (required for DMX side)
Inputs / outputs & connections KNX terminal; DMX512 via RS485 250 kBaud galvanically isolated, 3 x screw terminals 0.8 mm2 (approx. 18 AWG); 120 Ohm termination by jumper; USB Type B; 3 x 16-step rotary switch, push button T1, PRG button + LED
Protection rating IP20
Dimensions 107 x 75 x 31 mm (4.21 x 2.95 x 1.22 in)
Mounting DIN rail, 6 TE (modules)
Operating temperature -5 to +45 °C (23 to 113 °F)
