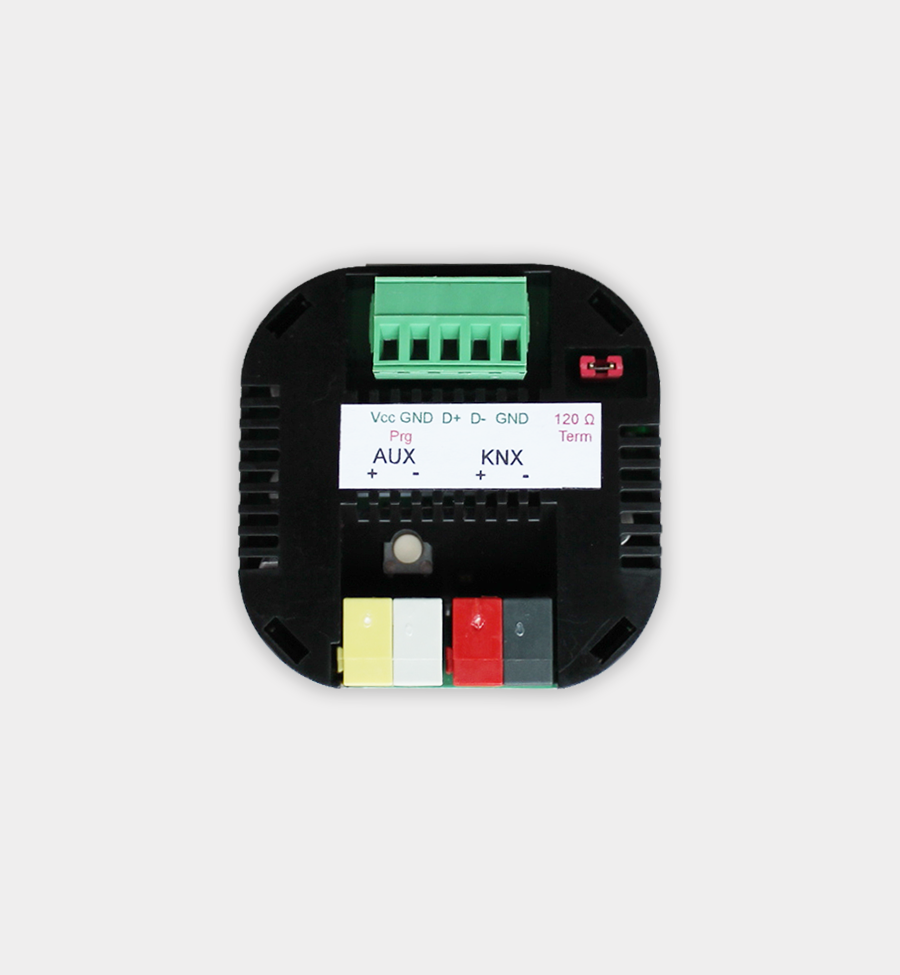

KNX-GW-MODBUS-SK07-RS485 - KNX Modbus RTU Gateway, RS485, In-Wall, 32 Datapoints
KNX-GW-MODBUS-SK07-RS485 - KNX Modbus RTU Gateway, RS485, In-Wall, 32 Datapoints

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ARCUS EDS

KNX-GW-MODBUS-SK07-RS485 - KNX Modbus RTU Gateway, RS485, In-Wall, 32 Datapoints

SKU: 40300007
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$235.37 USD
-17% $282.45 USD $235.37 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The KNX-GW-MODBUS-SK07-RS485 is a compact in-wall Modbus RTU master that polls up to 31 Modbus devices over RS485. Its 32 freely assignable datapoints are scaled and mapped to KNX in ETS.

The gateway fits an SK07 in-wall housing, offers a 12 VDC output for Modbus devices and requires a 24-32 VDC auxiliary supply. Baud rate, parity and reading cycle are all set in ETS.

Key Features

  • Modbus RTU master with 32 freely assignable, scalable datapoints
  • 300-115,200 baud, parity even/odd/none, device IDs 1-247
  • Multiplier/offset scaling; KNX 1, 8, 16 and 32-bit datapoint types
  • Reading cycle adjustable from 10 s to 12 h
  • RS485 for up to 31 Modbus slaves; 12 VDC/100 mA output
  • Auxiliary supply 24-32 VDC, max. 100 mA (required)
  • SK07 in-wall housing, 50 x 50 x 20 mm (1.97 x 1.97 x 0.79 in), IP20; ETS app KNX-GW-ModBus

Technical Specifications

Article no. 40300007
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 240 mW at 24 VDC / 10 mA KNX load
Auxiliary supply 24-32 VDC, max 100 mA
Inputs / outputs & connections KNX terminal; RS485 Modbus (max 31 slaves); 12 VDC/100 mA output for Modbus devices
Protection rating IP20
Dimensions 50 x 50 x 20 (58 mm (2.28 in) diagonal)
Mounting Flush / in-wall box (SK07), plastic
Operating temperature -20 to +55 °C (-4 to 131 °F) / -25 to +80 °C (-13 to 176 °F)
