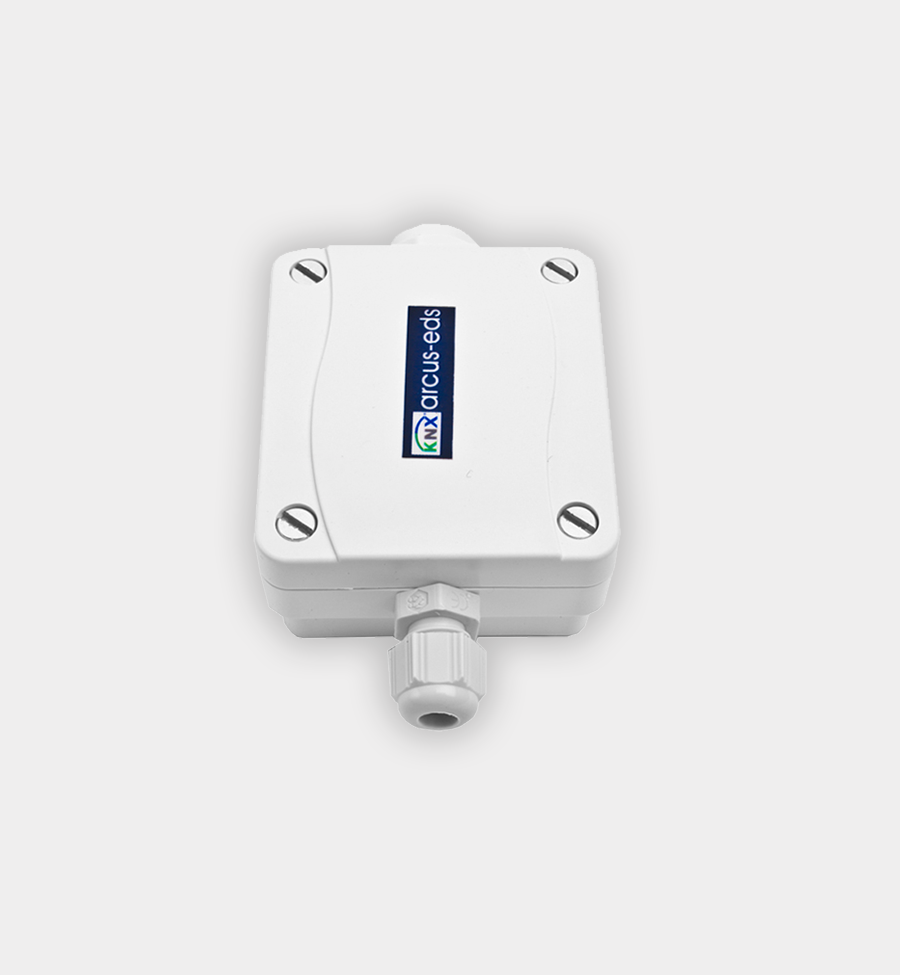

KNX-GW-MBUS-SK10 - KNX M-Bus Gateway, 1 Master for up to 3 Meters, Surface Mount, IP54/65
KNX-GW-MBUS-SK10 - KNX M-Bus Gateway, 1 Master for up to 3 Meters, Surface Mount, IP54/65

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ARCUS EDS

KNX-GW-MBUS-SK10 - KNX M-Bus Gateway, 1 Master for up to 3 Meters, Surface Mount, IP54/65

SKU: 60400001
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$256.41 USD
-17% $307.70 USD $256.41 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The KNX-GW-MBUS-SK10 is the surface-mount version of the arcus KNX M-Bus gateway, designed for plant rooms and meter cabinets. One M-Bus master reads up to three meters and maps up to 32 values to KNX.

The compact IP54/65 housing mounts with two screws, and the gateway runs on KNX bus power without an auxiliary supply. Configuration is done in ETS, with reading intervals from 10 seconds to 12 hours.

Key Features

  • One M-Bus master for up to 3 meters (EN 13757-2/3)
  • Up to 32 data values mapped to KNX
  • Reading cycle adjustable from 10 s to 12 h
  • Bus powered (approx. 550 mW), no auxiliary supply
  • IP54/65 surface housing, 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in), 2-screw mounting
  • ETS application; operating range -20 to +55 °C (-4 to 131 °F)

Technical Specifications

Article no. 60400001
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 550 mW at 24 VDC (bus powered)
Auxiliary supply Not required (bus coupler integrated)
Measuring Reads M-Bus meters (EN 13757-2/3); reading cycle 10 s – 12 h; max 32 data values
Inputs / outputs & connections KNX 2-pin terminal (red/black); M-Bus 2-pin screw terminal (one M-Bus master, up to 3 slaves)
Protection rating IP54/65
Dimensions 72 x 64 x 40 mm (2.83 x 2.52 x 1.57 in)
Mounting Surface/wall mount, 2 screws, plastic housing
Operating temperature -20 to +55 °C (-4 to 131 °F) (storage -20 to +85 °C (-4 to 185 °F))

Downloads

(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
