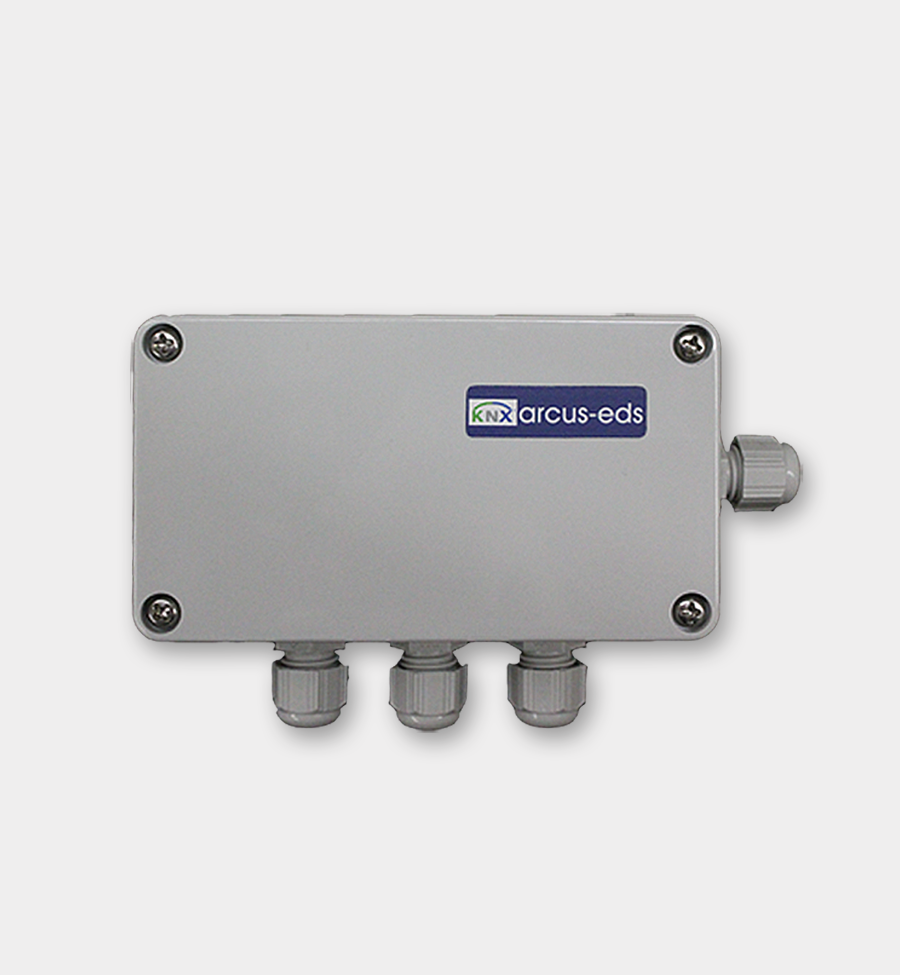

KNX-GW-MBUS-SK08 - KNX M-Bus Gateway, 3 Master Ports, Surface Mount, IP54/65

SKU: 60400008
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$287.97 USD
-17% $345.57 USD $287.97 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The KNX-GW-MBUS-SK08 provides three independent M-Bus master ports, each reading one meter. Because every port has a single meter, the meters can be read without assigning unique M-Bus primary addresses, which simplifies retrofits and mixed meter installations.

Up to 32 freely divisible values are passed to KNX. The gateway is bus powered, configured in ETS and housed in a gray IP54/65 wall-mount enclosure.

Key Features

  • 3 separate M-Bus master ports, one meter each (EN 13757-2/3)
  • Meter detection independent of M-Bus primary address
  • Up to 32 freely divisible data values mapped to KNX
  • Reading cycle adjustable from 10 s to 12 h
  • Bus powered (approx. 550 mW), no auxiliary supply
  • IP54/65 gray ABS wall housing, 115 x 65 x 55 mm (4.53 x 2.56 x 2.17 in)
  • Operating range -20 to +55 °C (-4 to 131 °F)

Technical Specifications

Article no. 60400008
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 550 mW at 24 VDC (bus powered)
Auxiliary supply Not required (bus coupler integrated)
Measuring Reads M-Bus meters (EN 13757-2/3); reading cycle 10 s – 12 h; max 32 data values
Inputs / outputs & connections KNX 2-pin terminal (red/black); 3 separate M-Bus 2-pin screw terminals, each its own M-Bus master for one meter
Protection rating IP54/65
Dimensions 115 x 65 x 55 mm (4.53 x 2.56 x 2.17 in)
Mounting Surface/wall mount, 2 screws, grey ABS
Operating temperature -20 to +55 °C (-4 to 131 °F) (storage -20 to +85 °C (-4 to 185 °F))
