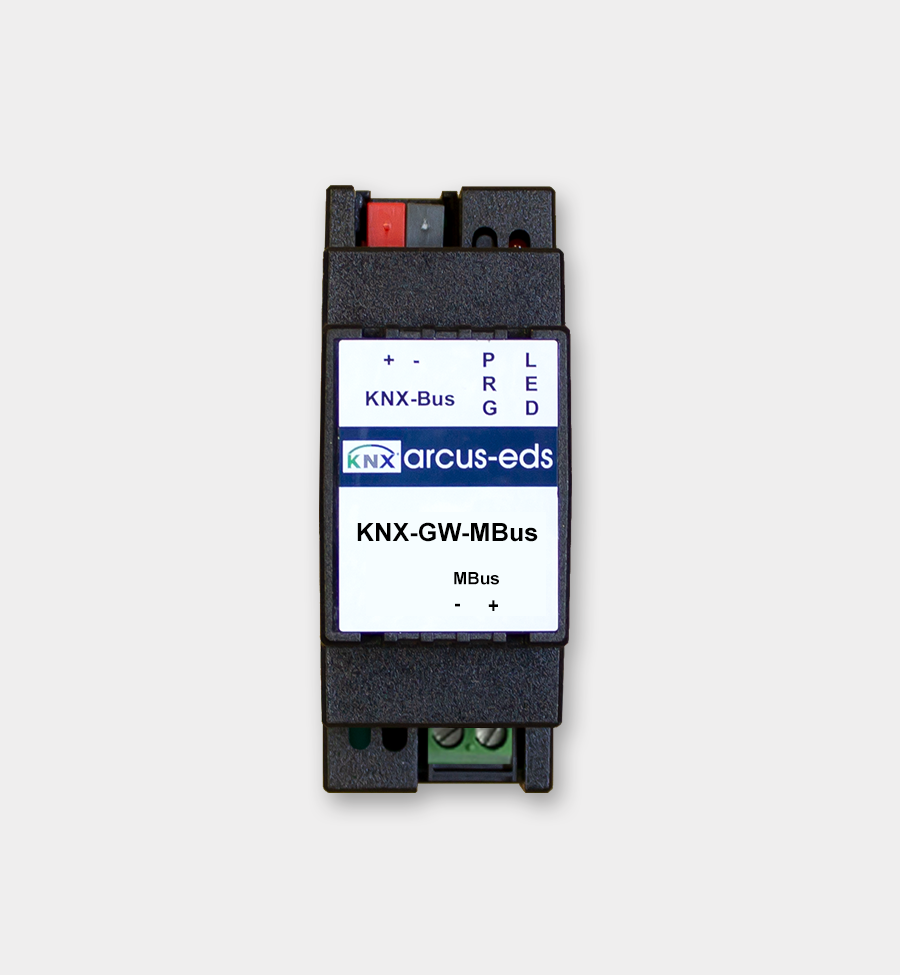

KNX-GW-MBUS-REG - KNX M-Bus Gateway, 1 Master for up to 3 Meters, DIN Rail
KNX-GW-MBUS-REG - KNX M-Bus Gateway, 1 Master for up to 3 Meters, DIN Rail

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ARCUS EDS

KNX-GW-MBUS-REG - KNX M-Bus Gateway, 1 Master for up to 3 Meters, DIN Rail

SKU: 60400002
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$261.67 USD
-17% $314.01 USD $261.67 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The KNX-GW-MBUS-REG is a DIN-rail M-Bus master that reads up to three M-Bus meters, such as electricity, water, heat or gas meters, and publishes up to 32 values on KNX.

It is configured entirely in ETS and powered from the KNX bus alone, so no auxiliary supply is needed. Reading intervals are adjustable from 10 seconds to 12 hours, making it a straightforward way to bring consumption data into KNX visualization and energy management.

Key Features

  • One M-Bus master for up to 3 meters (EN 13757-2/3)
  • Up to 32 data values mapped to KNX
  • Reading cycle adjustable from 10 s to 12 h
  • Bus powered (approx. 550 mW), no auxiliary supply
  • 2-module DIN rail, IP20
  • KNX and M-Bus 2-pin screw terminals
  • ETS application; operating range -20 to +55 °C (-4 to 131 °F)

Technical Specifications

Article no. 60400002
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 550 mW at 24 VDC (bus powered)
Auxiliary supply Not required (bus coupler integrated)
Measuring Reads M-Bus meters (EN 13757-2/3); reading cycle 10 s – 12 h; max 32 data values
Inputs / outputs & connections KNX 2-pin terminal (red/black); M-Bus 2-pin screw terminal (one M-Bus master, up to 3 slaves)
Protection rating IP20
Mounting DIN rail, 2 TE (35 mm (1.38 in)), plastic
Operating temperature -20 to +55 °C (-4 to 131 °F) (storage -20 to +85 °C (-4 to 185 °F))
