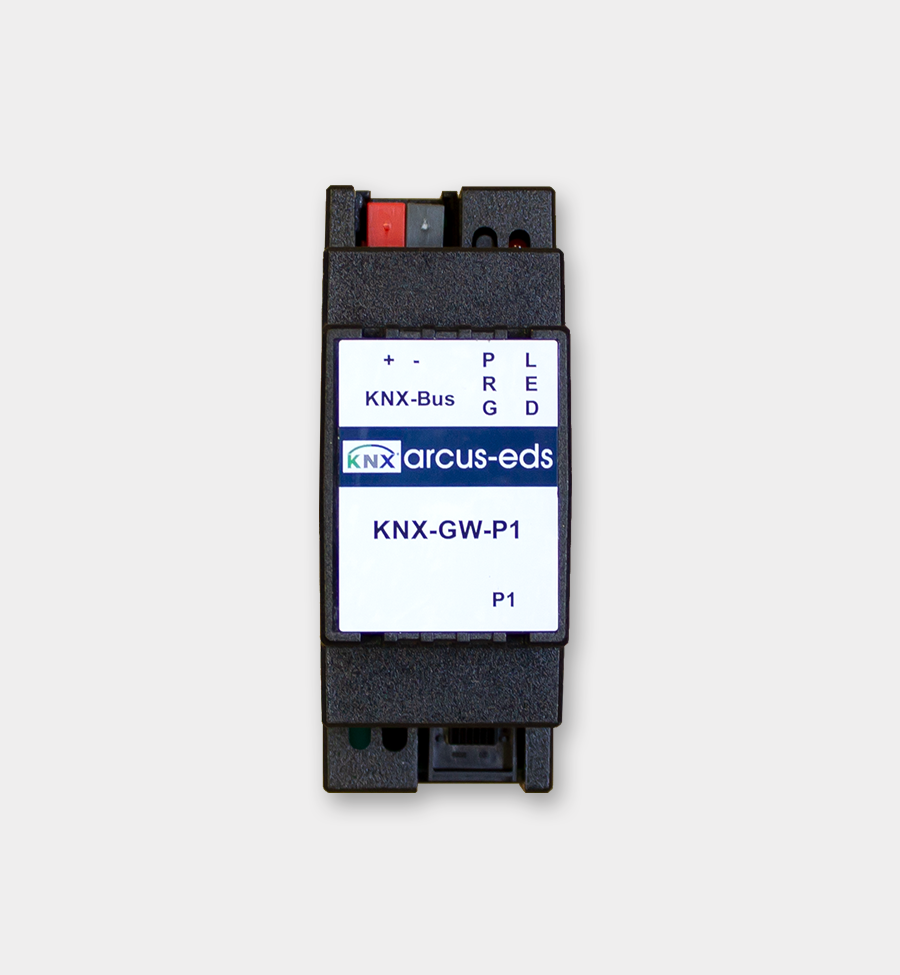

KNX-GW-HAN-P1-REG - KNX Gateway for Smart Meter P1 Port, RJ12, DIN Rail

SKU: 60400013
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$282.71 USD
-17% $339.25 USD $282.71 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The KNX-GW-HAN-P1-REG connects to the P1 customer port of Belgian and Dutch smart meters and publishes power, current, voltage and energy readings on KNX. It can also pass on data from up to four sub-meters linked to the smart meter, such as gas, heat or water.

The gateway mounts on a DIN rail, is bus powered and configured in ETS. A 2.5 m (8.2 ft) RJ12 cable for the P1 connection is included.

Key Features

  • Reads the P1 port of Belgian and Dutch smart meters
  • Up to 20 P1 values: power import/export, current and voltage L1-L3, cumulative energy
  • Up to 4 linked sub-meters (gas, heat, water)
  • 6-pin RJ12 P1 port, 2.5 m (8.2 ft) RJ12 cable included
  • Reading cycle adjustable from 10 s to 12 h
  • Bus powered (approx. 240 mW), 2-module DIN rail, IP20
  • ETS application; operating range -20 to +55 °C (-4 to 131 °F)

Technical Specifications

Article no. 60400013
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 240 mW at 24 VDC (bus powered)
Auxiliary supply Not required (bus coupler integrated)
Measuring Up to 20 P1 values: active power import/export, current L1-L3, voltage L1-L3, cumulated energy import/export etc.; plus up to 4 externally linked meters (gas, thermal, water, M-Bus)
Inputs / outputs & connections KNX 2-pin terminal (red/black); P1 6-pin RJ12 port, 2.5 m (8.2 ft) RJ12 cable included
Protection rating IP20
Mounting DIN rail, 2 TE (35 mm (1.38 in)), plastic
Operating temperature -20 to +55 °C (-4 to 131 °F) (storage -20 to +85 °C (-4 to 185 °F))

Application note: Reads the P1 port of Belgian and Dutch smart meters only and is not compatible with US utility meters.
