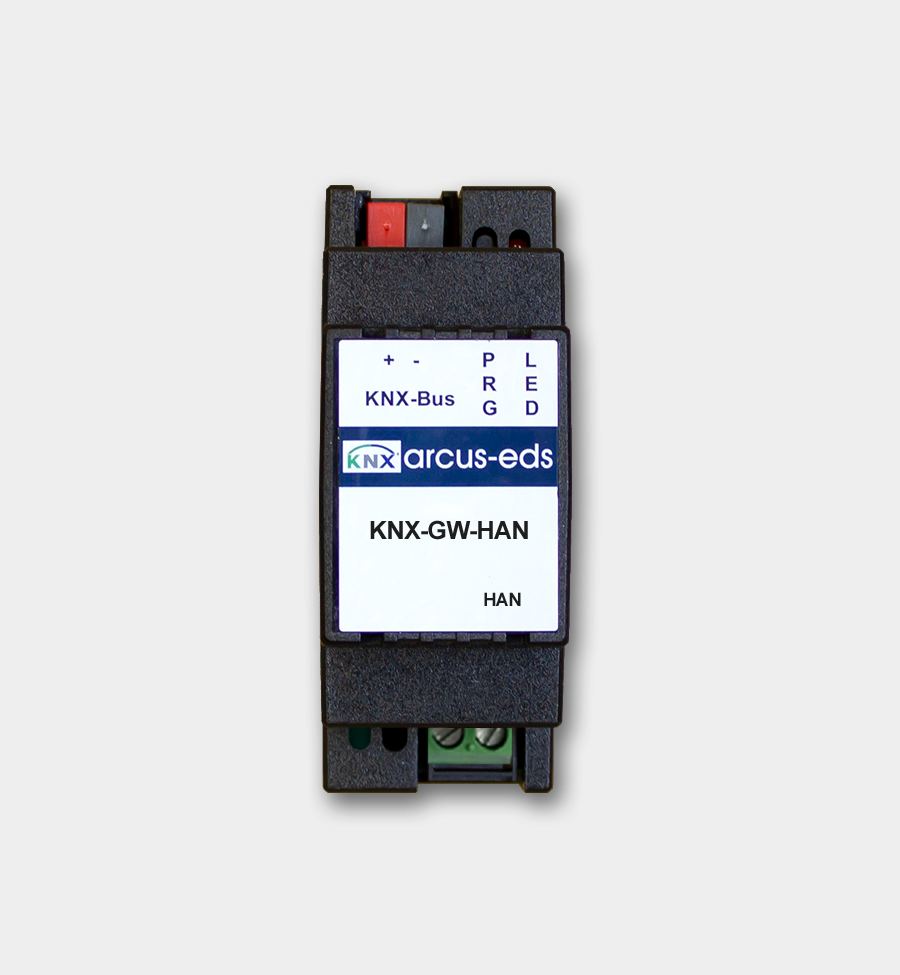

KNX-GW-HAN-MBUS-REG - KNX Gateway for Smart Meter HAN Port, DIN Rail
KNX-GW-HAN-MBUS-REG - KNX Gateway for Smart Meter HAN Port, DIN Rail

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ARCUS EDS

KNX-GW-HAN-MBUS-REG - KNX Gateway for Smart Meter HAN Port, DIN Rail

SKU: 60400012
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$261.67 USD
-17% $314.01 USD $261.67 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The KNX-GW-HAN-MBUS-REG reads the HAN port of Nordic utility smart meters from Kaifa, Kamstrup and AIDON and puts live power, current, voltage and energy values on KNX.

One gateway is used per meter. It mounts on a DIN rail, is powered from the KNX bus and is configured in ETS, giving KNX energy dashboards and load management direct access to the utility meter's data.

Key Features

  • Reads the HAN port of Kaifa, Kamstrup and AIDON smart meters
  • Up to 14 values: active/reactive power import/export, current and voltage L1-L3, cumulative energy
  • Meter serial number, timestamp and communication-error object
  • Adjustable update interval from 10 s
  • Bus powered (approx. 240 mW), no auxiliary supply
  • 2-module DIN rail, IP20; one gateway per meter
  • ETS application; operating range -20 to +55 °C (-4 to 131 °F)

Technical Specifications

Article no. 60400012
KNX bus voltage KNX 21-32 VDC
Power consumption approx. 240 mW at 24 VDC (bus powered)
Auxiliary supply Not required (bus coupler integrated)
Measuring Up to 14 values: active/reactive power import/export, current L1-L3, voltage L1-L3, cumulated active/reactive energy import/export; meter serial, timestamp, comm-error object
Inputs / outputs & connections KNX 2-pin terminal (red/black); HAN 2-pin screw terminal (M-Bus-like slave)
Protection rating IP20
Mounting DIN rail, 2 TE (35 mm (1.38 in)), plastic
Operating temperature -20 to +55 °C (-4 to 131 °F) (storage -20 to +85 °C (-4 to 185 °F))

Application note: Reads the HAN port of Nordic smart meters only and is not compatible with US utility meters.
