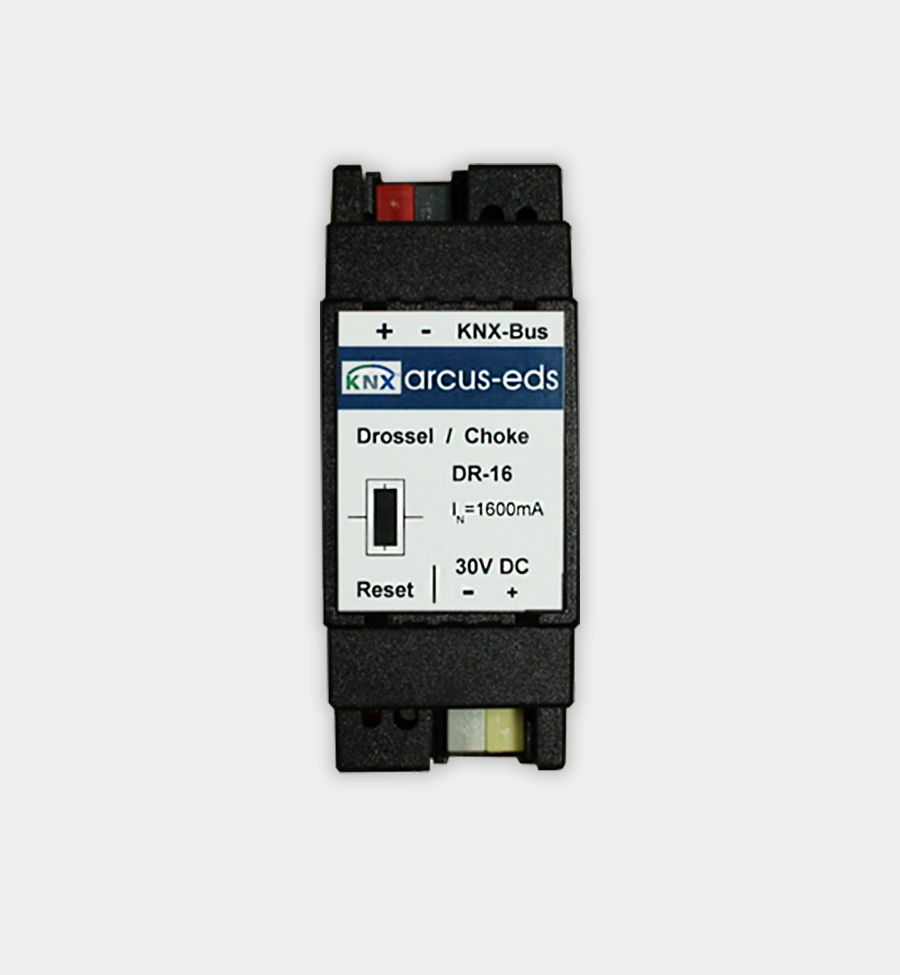

KNX-Drossel-DR16 - KNX Choke 1.6 A with Line Reset Button, DIN Rail
KNX-Drossel-DR16 - KNX Choke 1.6 A with Line Reset Button, DIN Rail

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ARCUS EDS

KNX-Drossel-DR16 - KNX Choke 1.6 A with Line Reset Button, DIN Rail

SKU: 66000016
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$124.92 USD
-17% $149.90 USD $124.92 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The KNX-Drossel-DR16 is a DIN-rail KNX choke rated at 1.6 A. It decouples an unchoked DC power supply from the KNX line so the supply can serve as the bus power source for that line.

A reset button with indicator LED lets you reset the connected line during commissioning or troubleshooting. The choke is a passive device, needs no ETS application and takes two module widths on the rail.

Key Features

  • Rated current 1,600 mA
  • Decouples an unchoked DC supply (nominal 30 VDC) from the KNX line
  • Line reset button with reset LED
  • Input terminal white/yellow, output terminal red/black
  • 2-module DIN rail (36 mm (1.42 in)), IP20
  • Passive device, no ETS application; -25 to +55 °C (-13 to 131 °F)

Technical Specifications

Article no. 66000016
KNX bus voltage Nominal 30 VDC (summary says 24 VDC)
Auxiliary supply none (input from KNX power supply / unchoked 30 VDC)
Inputs / outputs & connections Input: 2-pole terminal white/yellow (DC supply); output: 2-pole terminal red/black (KNX line)
Protection rating IP20
Dimensions DIN-rail 2 TE (36 mm (1.42 in))
Mounting DIN rail (REG), 2 TE
Operating temperature -25 to +55 °C (-13 to 131 °F) (storage -25 to +85 °C (-13 to 185 °F))
