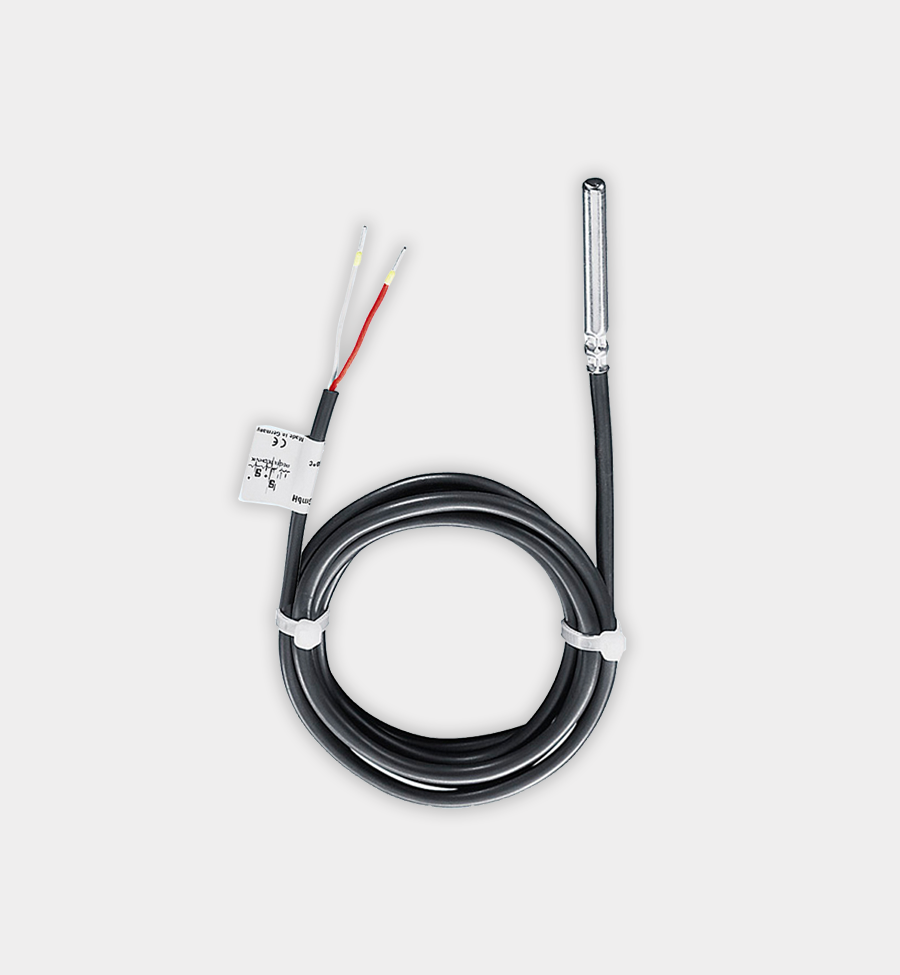

HTF-PT1000 - PT1000 Sleeve Temperature Probe, 1.5 m (4.9 ft) Cable
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$17.09 USD
Regular price
-38%
$27.35 USD
Sale price
$17.09 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The HTF-PT1000 is a PT1000 sleeve (cable) temperature probe for immersion wells and general HVAC measuring points. It ships on a 1.5 m (4.9 ft) cable and is rated IP54/65, making it a flexible choice for heating, cooling and domestic hot water applications.
Choose the cable material to match the application temperature: PVC for -35 to +105 °C (-31 to 221 °F), silicone for -50 to +180 °C (-58 to 356 °F), or PTFE for -50 to +250 °C (-58 to 482 °F).
Key Features
- PT1000 sleeve probe for immersion wells
- PVC cable: -35 to +105 °C (-31 to +221 °F)
- Silicone cable: -50 to +180 °C (-58 to +356 °F)
- PTFE cable: -50 to +250 °C (-58 to +482 °F)
- 1.5 m (4.9 ft) cable, IP54/65
Technical Specifications
| Article no. | 90100002 (PVC Cable), 90100003 (Silicone Cable), 90100055 (PTFE Cable) |
|---|---|
| Measuring |
PVC Cable: PT1000 sleeve probe, -35 to +105 °C (-31 to 221 °F) Silicone Cable: PT1000 sleeve probe, -50 to +180 °C (-58 to 356 °F) PTFE Cable: PT1000 sleeve probe, -50 to +250 °C (-58 to 482 °F) |
| Inputs / outputs & connections |
PVC Cable: 1.5 m (4.9 ft) PVC cable Silicone Cable: 1.5 m (4.9 ft) Silicone cable PTFE Cable: 1.5 m (4.9 ft) PTFE cable |
| Protection rating | IP54/65 |
Application note: Accessory probe for KNX sensor modules with a PT1000 input, such as the arcus SK10-TC.
(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
