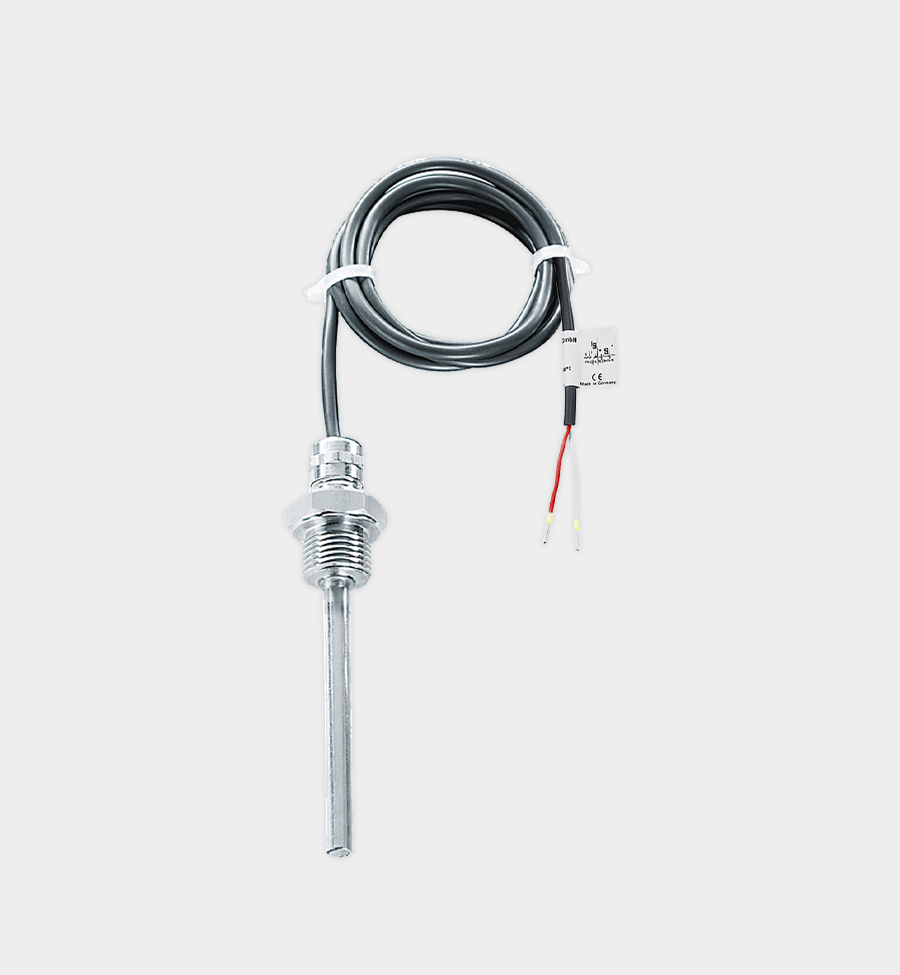

ESTF-PT1000 - PT1000 Screw-In Immersion Probe, G 1/2 in, Stainless Steel, 1.5 m (4.9 ft) Cable
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$38.79 USD
Regular price
-38%
$62.07 USD
Sale price
$38.79 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The ESTF-PT1000 is a screw-in immersion temperature probe with a V4A stainless steel stem and G 1/2 in thread, for direct measurement in tanks, pipes and hydronic systems.
It is offered with a 50 mm (1.97 in) or 100 mm (3.94 in) stem and a 1.5 m (4.9 ft) cable in PVC (-35 to +105 °C (-31 to 221 °F)) or silicone (-50 to +180 °C (-58 to 356 °F)), and is rated IP54/65.
Key Features
- PT1000 screw-in immersion probe
- V4A stainless steel stem, 50 or 100 mm (1.97 or 3.94 in)
- G 1/2 in thread
- PVC cable: -35 to +105 °C (-31 to +221 °F)
- Silicone cable: -50 to +180 °C (-58 to +356 °F)
- 1.5 m (4.9 ft) cable, IP54/65
Technical Specifications
| Article no. | 90100008 (50 mm (1.97 in) PVC Cable), 90100009 (100 mm (3.94 in) PVC Cable), 90100010 (50 mm (1.97 in) Silicone Cable), 90100011 (100 mm (3.94 in) Silicone Cable) |
|---|---|
| Measuring |
50 mm (1.97 in) PVC Cable: PT1000 screw-in/immersion probe, 50 mm (1.97 in) V4A, G 1/2", -35 to +105 °C (-31 to 221 °F) 100 mm (3.94 in) PVC Cable: PT1000 screw-in/immersion probe, 100 mm (3.94 in) V4A, G 1/2", -35 to +105 °C (-31 to 221 °F) 50 mm (1.97 in) Silicone Cable: PT1000 screw-in/immersion probe, 50 mm (1.97 in) V4A, G 1/2", -50 to +180 °C (-58 to 356 °F) 100 mm (3.94 in) Silicone Cable: PT1000 screw-in/immersion probe, 100 mm (3.94 in) V4A, G 1/2", -50 to +180 °C (-58 to 356 °F) |
| Inputs / outputs & connections |
50 mm (1.97 in) PVC Cable: 1.5 m (4.9 ft) PVC cable 100 mm (3.94 in) PVC Cable: 1.5 m (4.9 ft) PVC cable 50 mm (1.97 in) Silicone Cable: 1.5 m (4.9 ft) Silicone cable 100 mm (3.94 in) Silicone Cable: 1.5 m (4.9 ft) Silicone cable |
| Protection rating | IP54/65 |
| Mounting | Screw-in G 1/2" |
Application note: For KNX sensor modules with a PT1000 input; the G 1/2 in (BSP) thread may need an adapter for NPT fittings.
(CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations)
