WOLF

WOLF KNX Smart Scene Keypads — US 1-Gang · 2, 3 or 6 Buttons

Coming soon
SKU: WOLF-KNX-002-STD
✓ UL Listed
This product is certified by a Nationally Recognized Testing Laboratory (NRTL) — such as UL, ETL, or CSA — for direct installation in USA projects. Meets NEC requirements without additional AHJ approval.
Pre-order $269.00
-10% $299.00 $269.00
Buttons
Engraving

Fill in the form below, and we'll get back to you with more information as soon as possible.

KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Got questions?

Feel free to get in touch

...or just ask an expert!

Video chat Chat Email +1 (786) 956-6821
ESTIMATED SHIPPING: Q3 2026 · FROM MIAMI, FL

The first ETL-certified KNX keypad engineered for the standard US single-gang box

Every KNX project in North America meets the same wall: European keypads don't fit US boxes, don't carry a UL or ETL mark, and don't pass inspection. The WOLF Smart Scene Keypad resolves all three. It mounts in a standard single-gang box, follows the Decora form factor, and carries ETL certification to UL 62368-1 and CSA C22.2 No. 62368-1 for low-voltage Class 2 installation.

Choose your control density — 2, 3 or 6 buttons, one gang

Every button is freely configurable in ETS: switching, dimming, RGB / RGBW color control, shades and curtains, or scene recall.

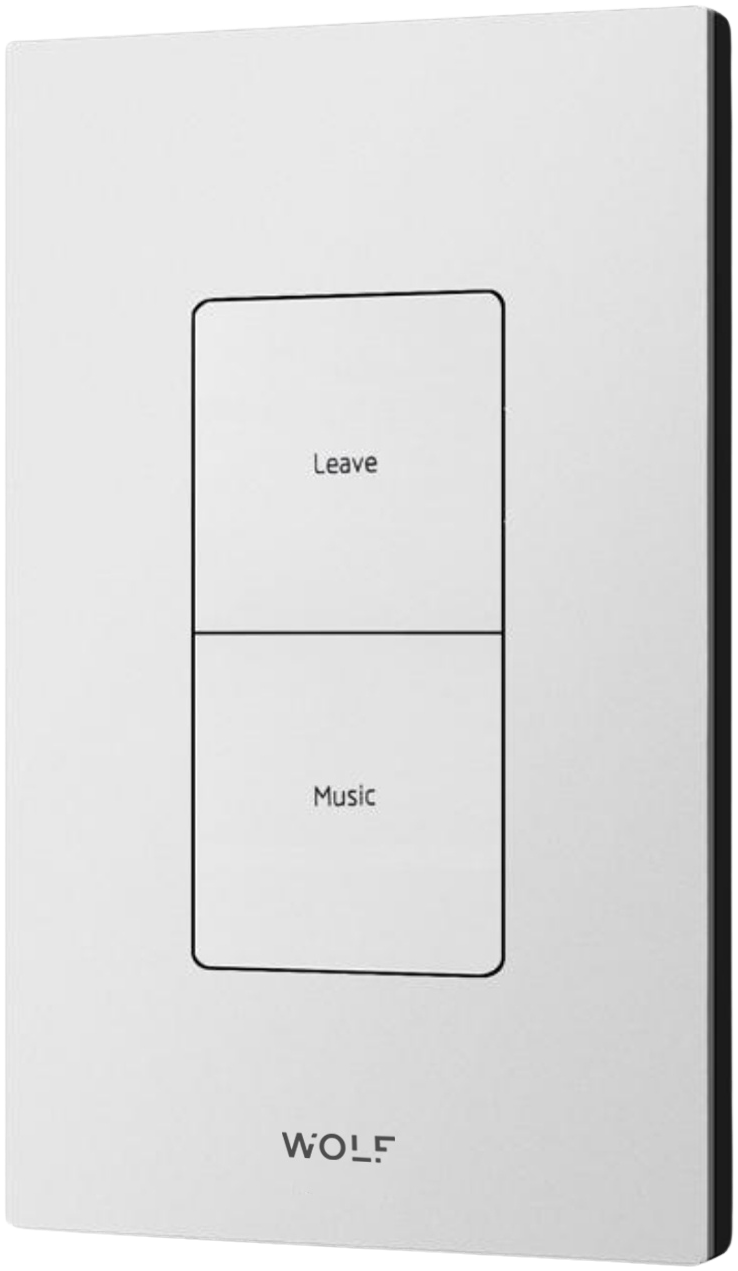

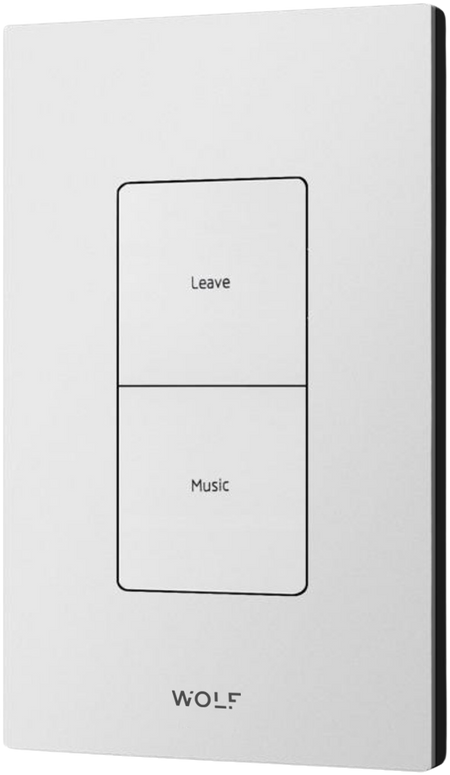

2-Button The dimmer pair every room understands at first touch. BRIGHTER / DARKER

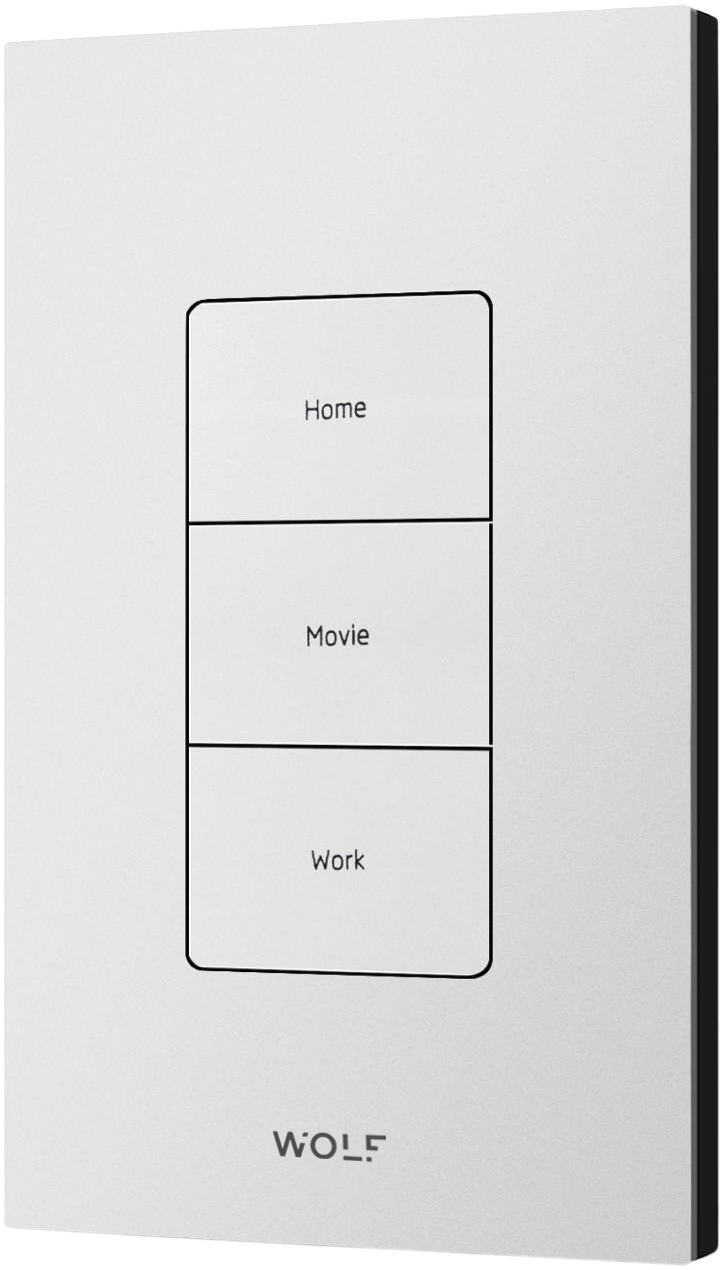

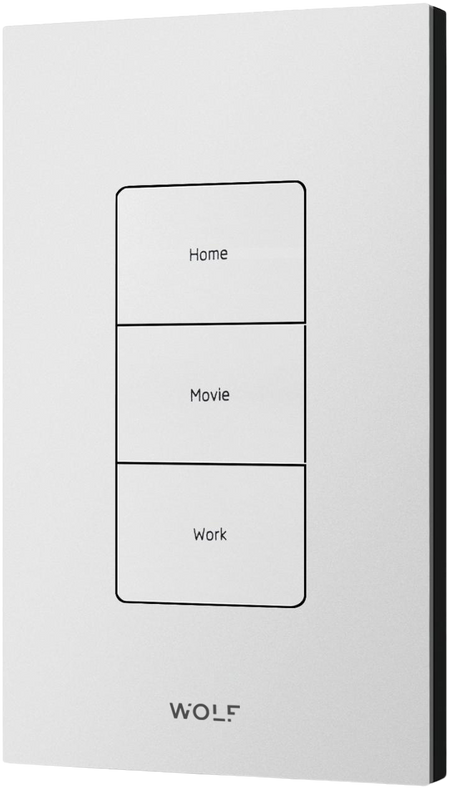

3-Button On, the client's favorite scene, off — the universal three. ON / SCENE / OFF

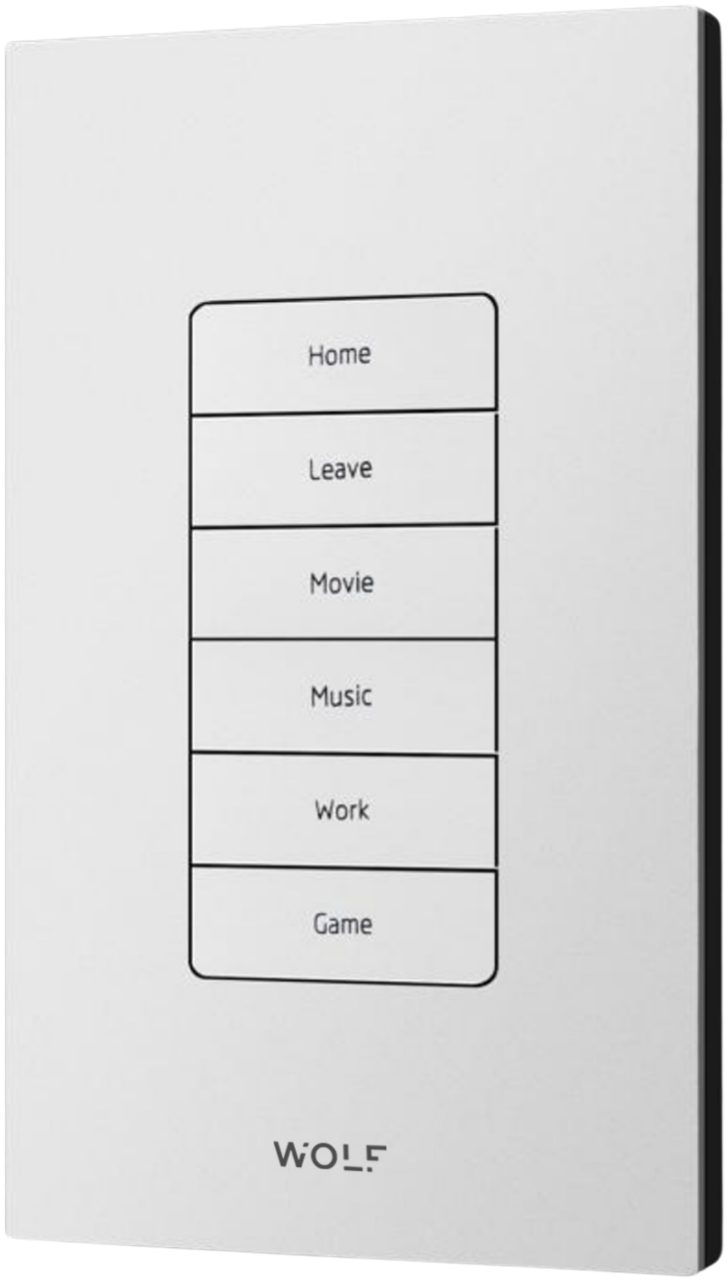

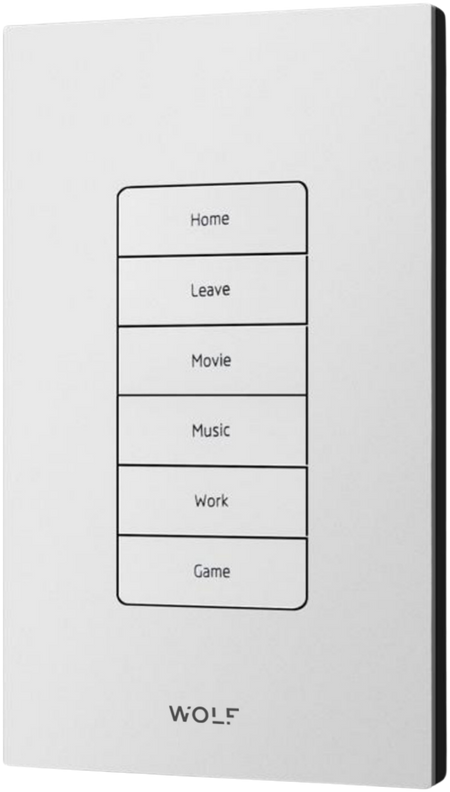

6-Button Whole-room scene control — more density than any comparable US-format keypad. ON / BRIGHT / ENTERTAIN / RELAX / NIGHT / OFF

Powered by the bus. Nothing else.

21–30 V DC from the KNX line — no line voltage, no neutral, no auxiliary supply. A single twisted pair delivers power and communication, with Class 2 wiring throughout. Cleaning mode locks the buttons for maintenance, and every button can be enabled or disabled over the bus.

Made to be read

Backlit laser-engraved button labels with adjustable LED brightness and flash frequency — the same legibility standard as the premium US keypad brands. Stocked units ship with the standard sets above. Or choose Custom Text and label every button your way — up to 12 characters per key, engraved at our Florida facility, with a proof emailed for approval before we engrave.

Blends into any US interior

Ships in white. Decora-standard, so it pairs with any off-the-shelf wallplate — screwless, metal, or colored — from any brand your client already uses. Wallplate not included.

Specifications

Models WOLF KNX-002 · KNX-003 · KNX-006
Protocol KNX TP (twisted pair) · ETS 5 / ETS 6
Power 21–30 V DC via bus · 50 mA · no neutral required
Certification ETL Certified — UL 62368-1 · CSA C22.2 No. 62368-1
Wiring Low-voltage Class 2
Protection rating IP20
Operating temperature −4 °F to +140 °F (−20 °C to +60 °C)
Humidity 10–90% RH, non-condensing
Dimensions 4.11 × 1.81 × 1.54 in (104.5 × 46 × 39 mm)
Mounting Standard US 1-gang wall box · Decora form factor

PRE-ORDER — Ships Q3 2026. Launch pricing and free custom engraving end September 1. Custom-engraved units are final sale. Free US shipping on orders $500+.

Ordering for a project? Contact us to apply for an integrator account — trade pricing on 10+ units.
  • Barcode WOLF-KNX-002-STD
