KNX Supply

Home Assistant Yellow Server with Raspberry Pi CM4, Home Assistant installed, KNX compatible

SKU: HA Yellow Pro Kit HOME
(0)
? US Listing status unknown
US certification status for this product has not been verified yet. Contact us if you need this information before specifying.
$549.00 USD
-31% $799.00 USD $549.00 USD
Out of stock
Contact us for availability
Version
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

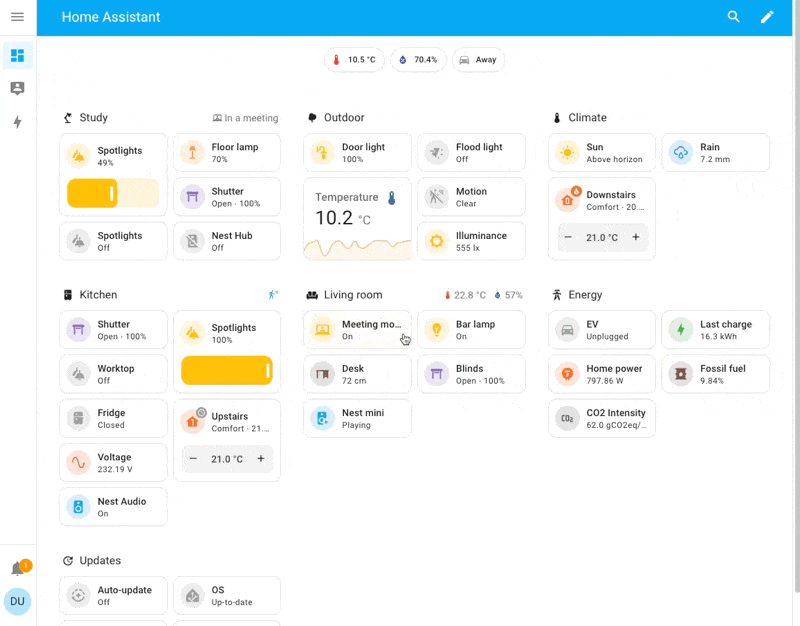

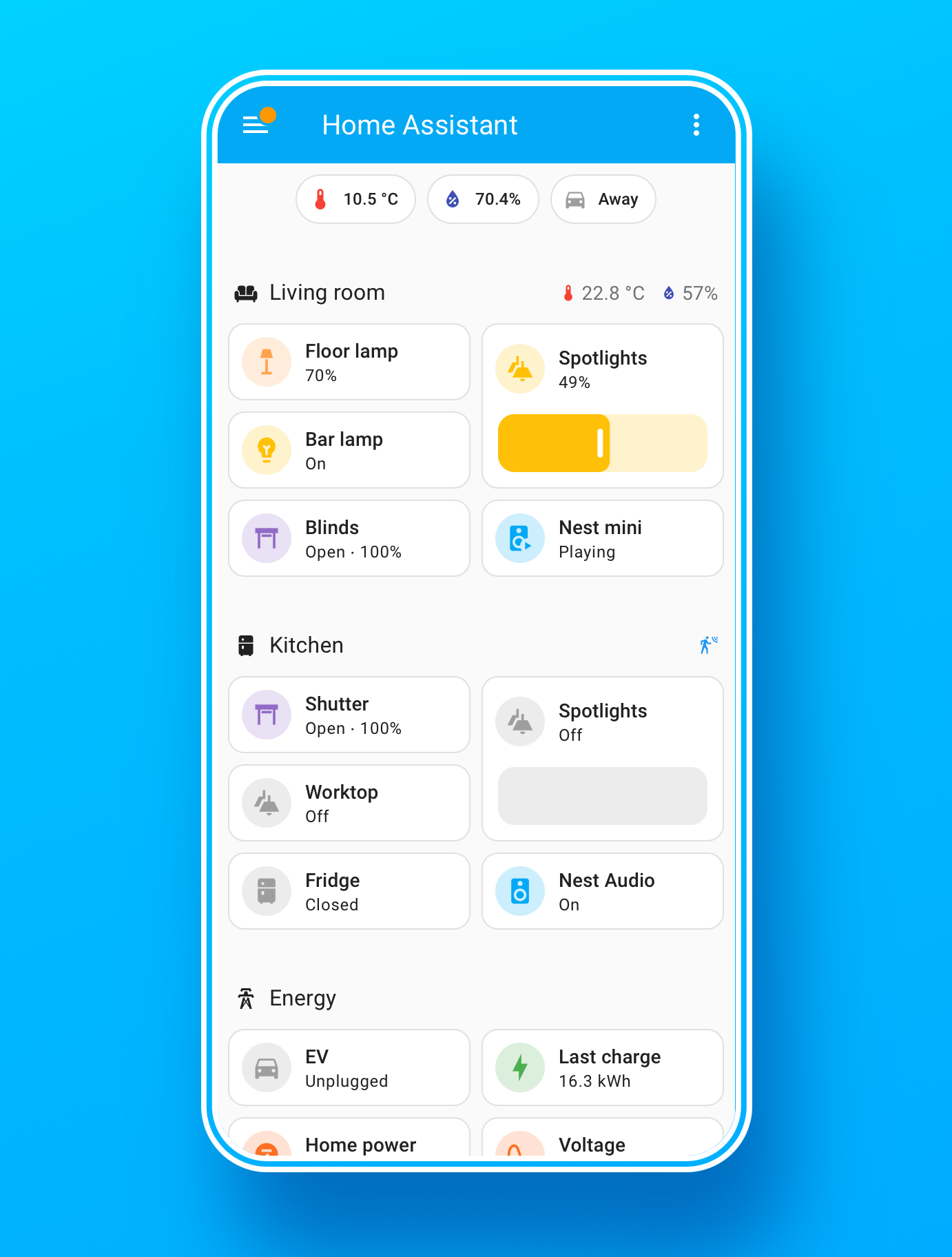

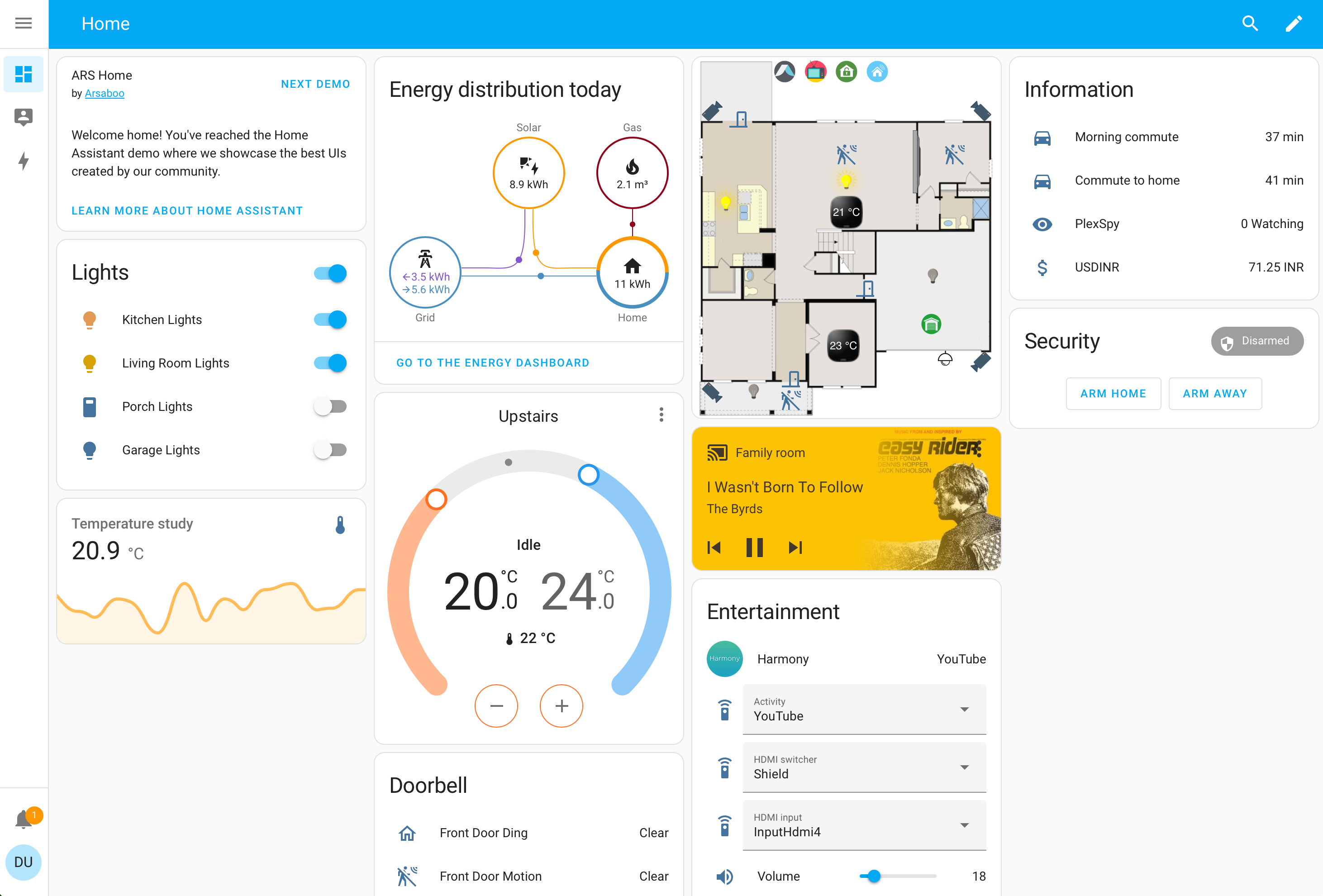

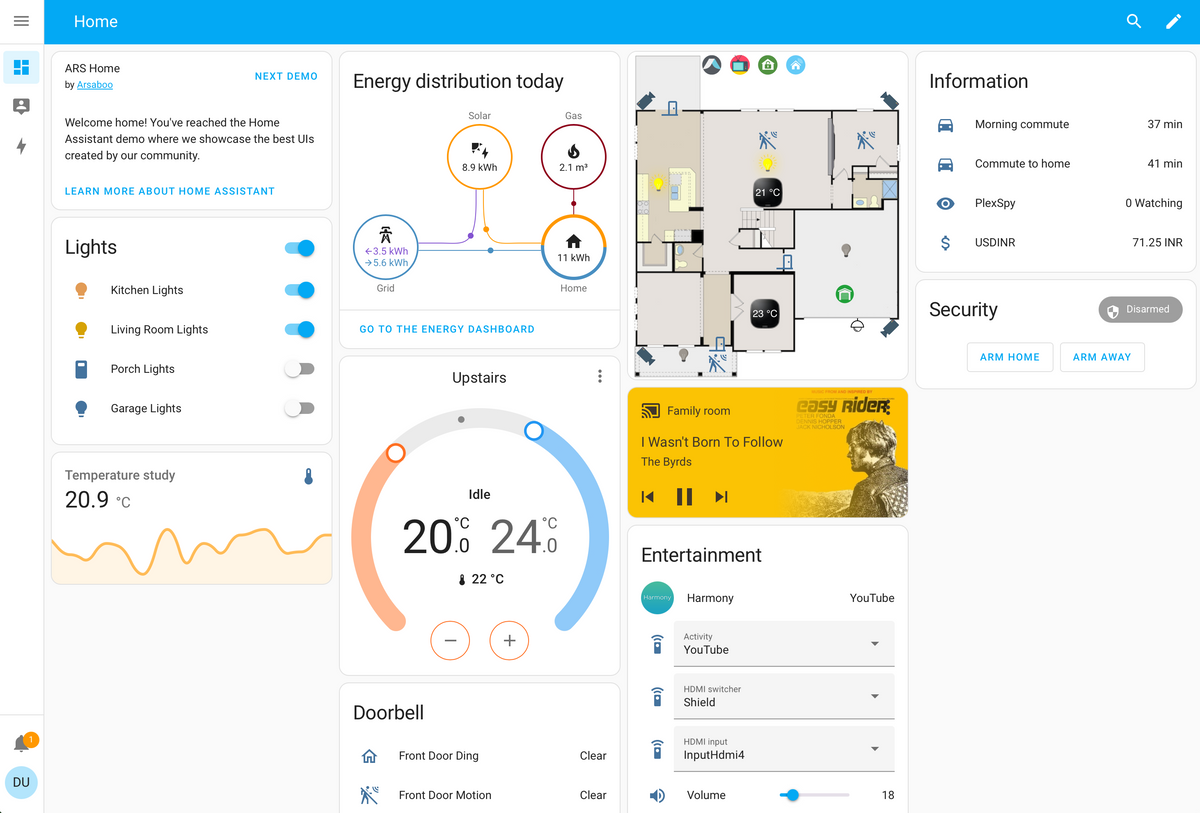

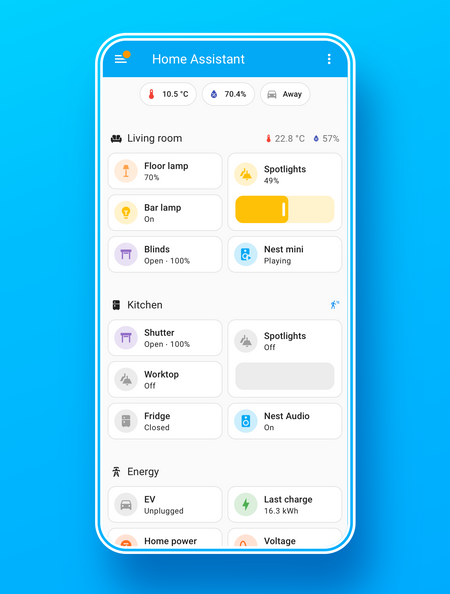

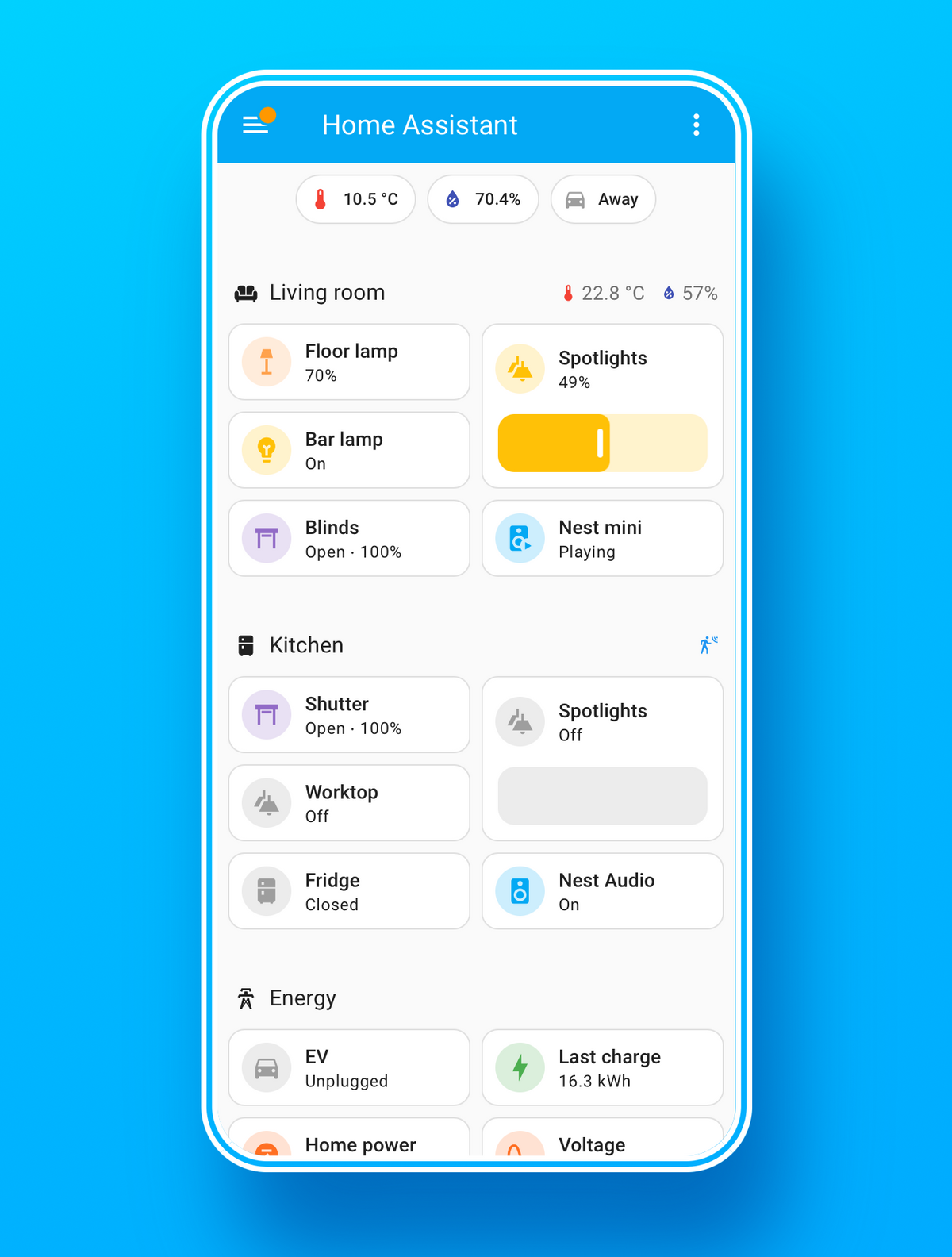

Home Assistant Yellow integrates 1,000+ different devices and services, allowing you to create powerful automations and get insight into your energy usage. All from an easy-to-use interface that runs 100% locally without anything in the cloud.

The KNX integration for Home Assistant allows you to connect to KNX/IP devices.

The integration requires a local KNX/IP interface or router. Through this, it will establish a connection between Home Assistant and your KNX bus.

There is currently support for the following device types within Home Assistant:

Home Assistant Yellow grows with you.

A home is not static. As we grow as a person or expand our family, our homes evolve. What we buy today, should work tomorrow. With Home Assistant Yellow we have created a system that can be upgraded so it can keep up as you grow.

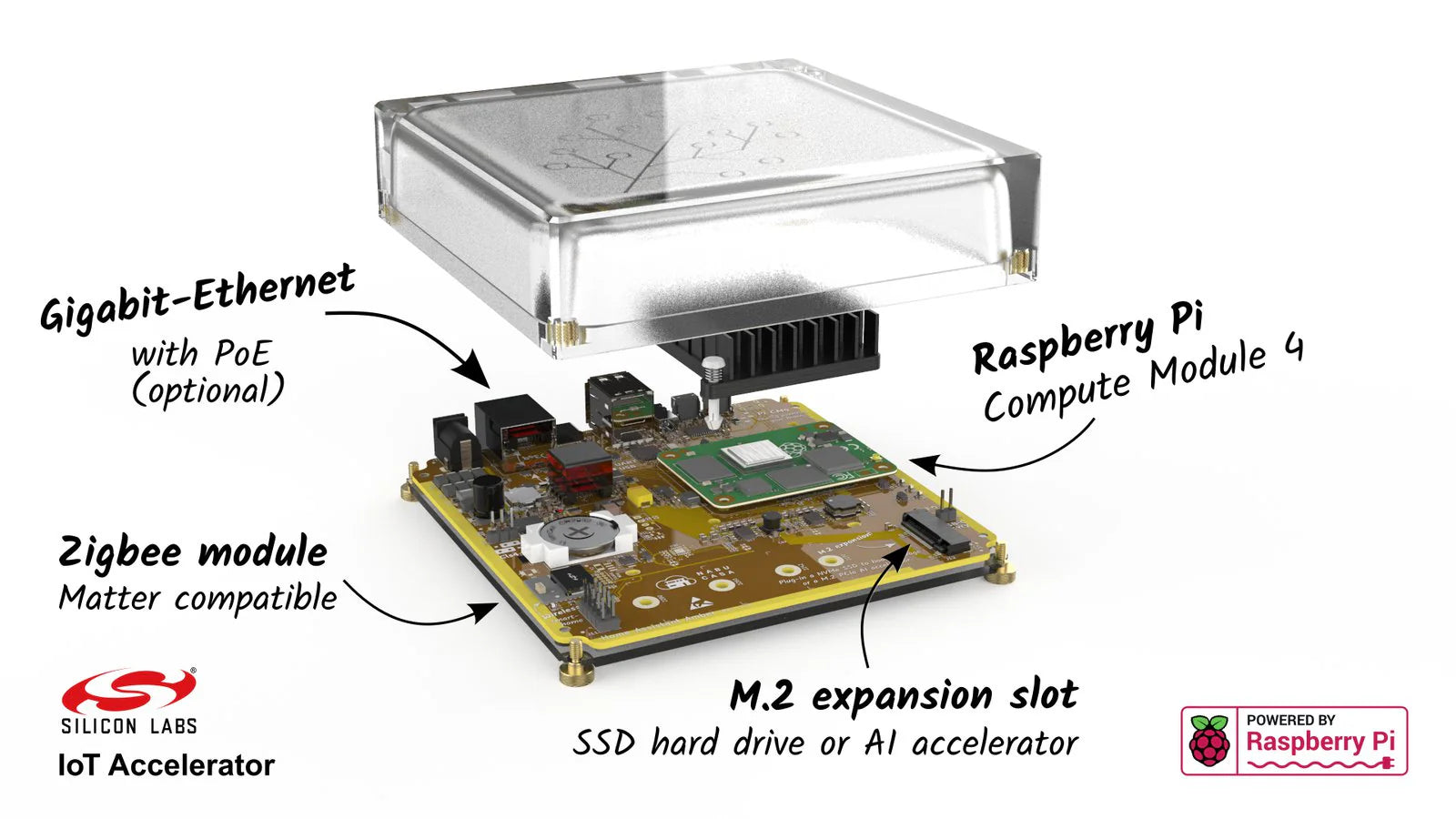

At the heart of Home Assistant Yellow is the Raspberry Pi Compute Module 4. This plugs into the Home Assistant Yellow board and provides the brains. You can upgrade to a more powerful version of the Compute Module 4 at any time.

Home Assistant Yellow includes the latest and greatest Zigbee radio chip from Silicon Labs to communicate with smart devices in your home. The chip is forward-compatible with the upcoming Matter smart home connectivity standard, in which Silicon Labs is heavily involved. Home Assistant Yellow will be compatible with Matter as soon as the Silicon Labs Matter SDK is released.

Home Assistant Yellow also contains an M.2 extension port. This allows you to easily plug in an NVMe SSD drive to extend the available space.

SPECIFICATIONS

Carrier board for

Raspberry Pi

Compute Module 4

(CM4)
  • CM4 board-to-board connector
  • Supports direct boot from NVMe devices (e.g., for CM4 Lite)
  • 12 cm x 12 cm
  • Compatible with all 32 variants of CM4
    • Quad-core Cortex-A72 (ARMv8) 64-bit / 1.5 GHz
    • Up to 8 GB RAM
    • Up to 32 GB eMMC for CM4
    • Regulatory approval does not cover wireless variants

Integrated

smart-home wireless

(Silicon Labs MGM210P

Mighty Gecko Module)
  • Supports Zigbee 3.0, OpenThread, and Matter
  • 2.4 GHz radio with TX power up to +20 dBm
  • 1024 KB flash program memory, 96 KB RAM data memory
  • Pre-installed with Zigbee 3.0 firmware (EZSP), can be upgraded
Expansion slot
  • For NVMe SSDs (M-Key)
  • M.2 socket M-Key
  • Supports 2230, 2242, 2260, and 2280 modules
  • PCIe x1
  • Note: Google Coral AI Accelerator not working, details in this issue.
Networking
  • Gigabit Ethernet
USB Ports
  • 2 x USB 2.0 Type-A host port
  • 1 x USB-C 2.0 device port (Silicon Labs CP2102N USBXpress USB bridge)
    • UART mode (default): debug USB-to-serial adapter
    • USB mode: CM4 USB 2.0 interface for USB recovery
Audio
  • High-quality stereo audio DAC
  • 2 V RMS line-out on 3.5 mm audio jack
  • SNR 106 dB
Buttons
  • 2 x Push button
  • Red: Factory reset
  • Blue: To be determined
RTC
  • RTC backed by CR2032 battery
Status LEDs
  • Green: Power
  • Red: Disk usage
  • Yellow: Home Assistant system state
Power
  • 12 V / 2 A through barrel DC power jack (5.5 mm x 2.1 mm)
  • Typical power usage
    • Idle ~1.5 W
    • Idle with NVMe ~2.5 W
    • Load ~5-9 W

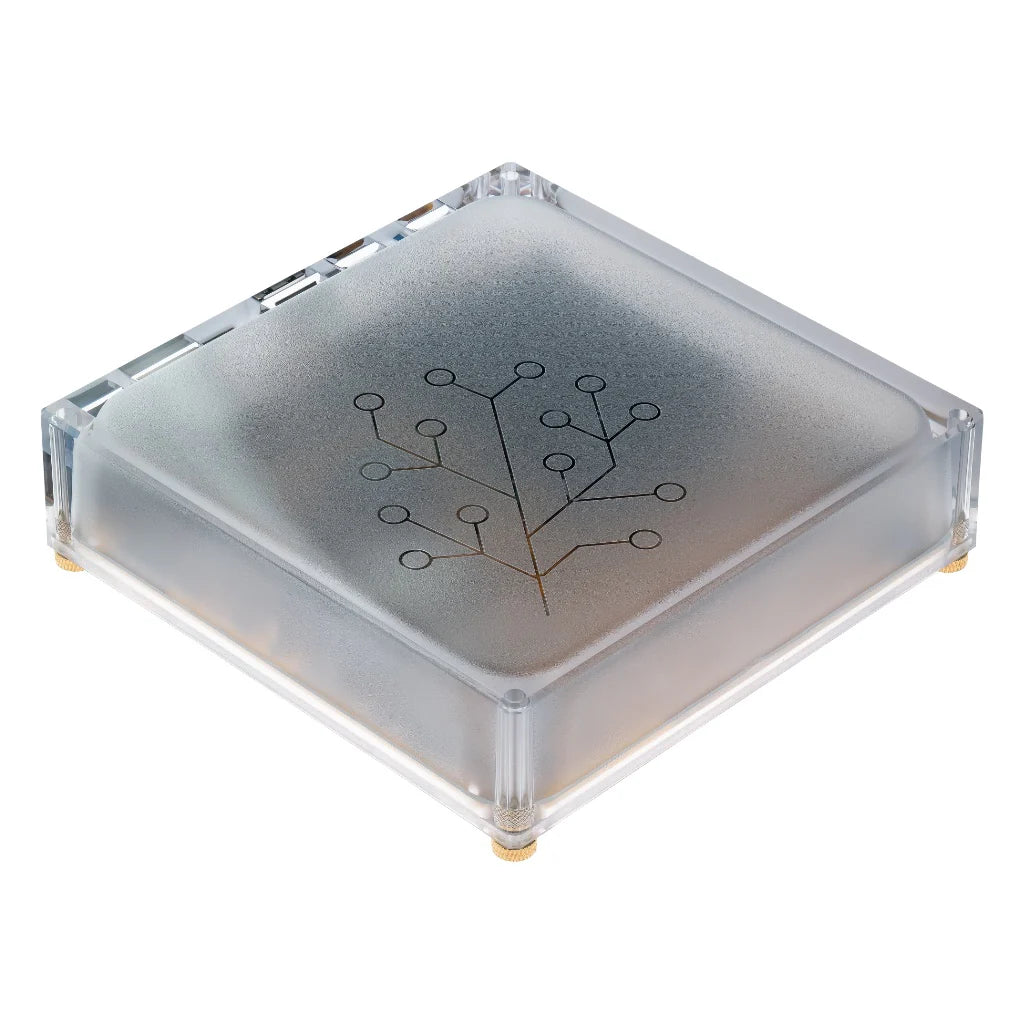

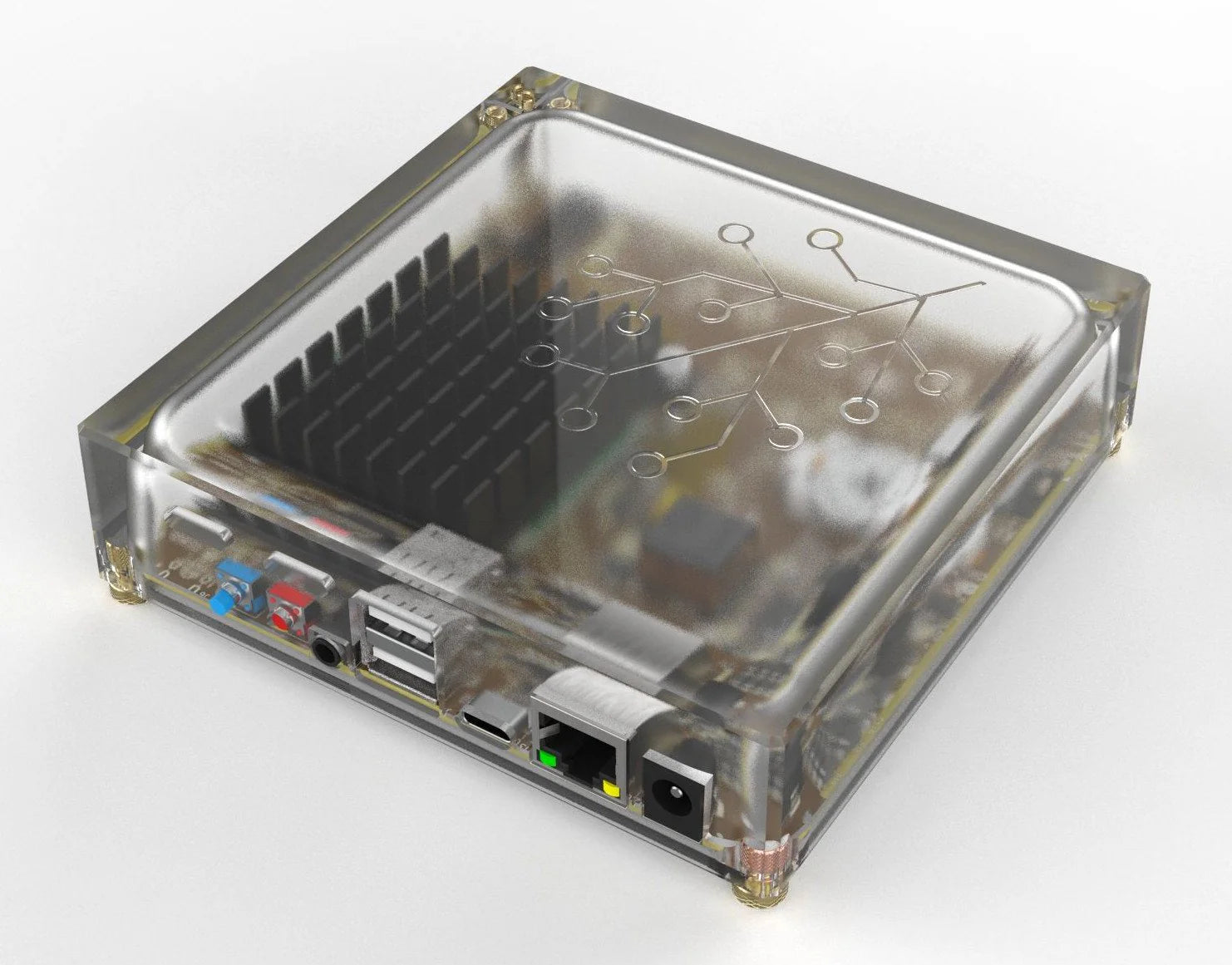

Enclosure
  • 123 mm x 123 mm x 36 mm
  • Translucent injection-molded polycarbonate plastic
  • Tool-free assembly
  • Accommodates custom heat sink (included)
