CASAMBI

KNX CASAMBI Gateway

SKU: VBU-K2C-W-BI
(0)
? US Listing status unknown
US certification status for this product has not been verified yet. Contact us if you need this information before specifying.
$265.00 USD
-30% $380.00 USD $265.00 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

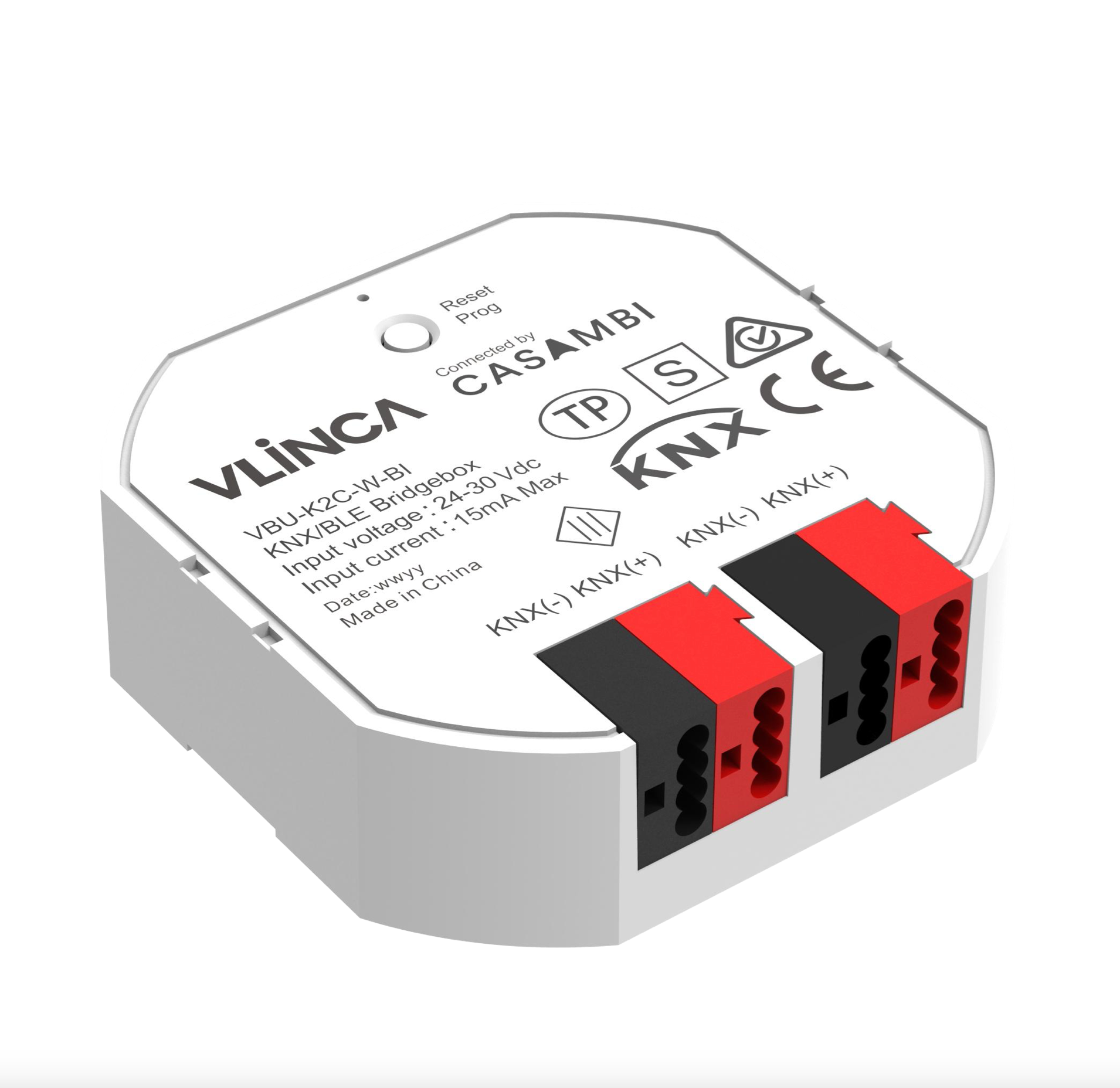

VBU-K2C-W-BI is a bridge box between KNX and CASAMBI network, which realizes KNX system and CASAMBI network interconnection.

Connect CASAMBI and KNX system.

Total up to 32 KNX channels and 32 CASAMBI scenes can be registered in the gateway.

Technical data

Control bus

• KNX/EIB

Input voltage

• 24-30V

Input signal port

• Two channel dry contact signals/one 24V signal

Output signal

• Bluetooth

Drain bus current

• < 15mA

Output range/distance

• >50m no barries

Installation

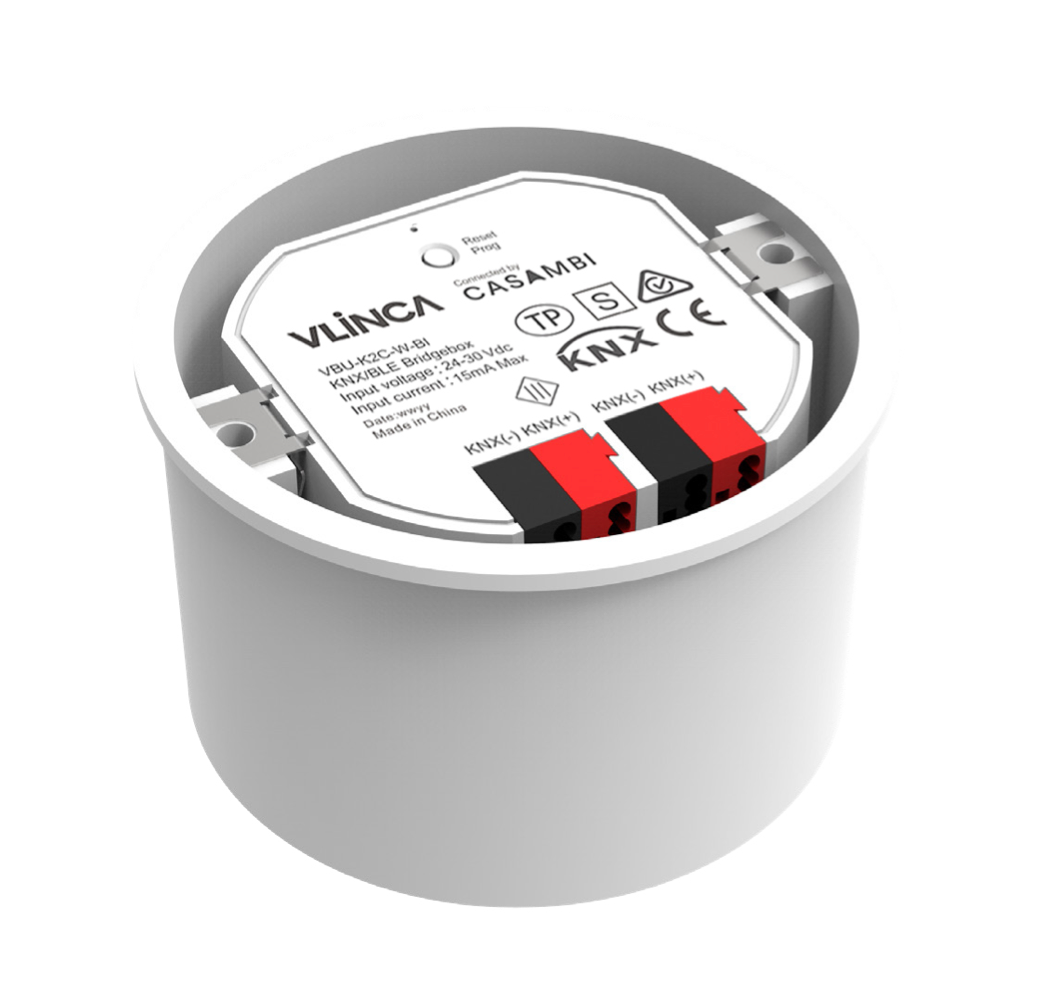

• Built-in 80/86mm junction box

Temperature range

• operation temperature: – 5 °C ... 45 °C

• Storage temperature: – 25 °C ... 55 °C

• Transportation temperature: – 25 °C ... 70 °C

Max. relative humidity

• 0...80%, non-cond.

Physical parameter

• Dimensions: 50.6x50.6x15MM (L x W x H)

• Degree of protection: IP20

• Color:  White



Downloads

Datasheet

ETS DDBB
